Hamm

HD 90

Smooth Drum Roller

Operating Weight
26,103 lb
Drum Width
66 in
Gross Power
134.2 hp
All smooth drum rollers

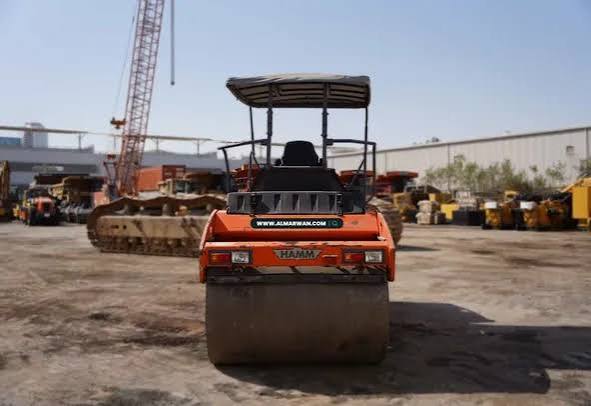

Hamm HD 90 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: wirtgen-group.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight26,103 lb
Fuel Capacity48.9 gal

Engine

Engine specifications
Engine ModelTCD 2012 L04 2V
Power Measured @2,300 rpm
Gross Power134.2 hp
Net Power134.2 hp
Engine MakeDEUTZ

Dimensions

Dimensions specifications
Ground Clearance31 in
Height - Top of Cab72 in
Wheelbase134 in
Overall Length15 in
Overall Width71 in

Drum

Drum specifications
Drum Width66 in
Drum Diameter47 in
Vibration Frequency 150 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High16,861 lb
Centrifugal Force - Low13,489 lb
Nominal Amplitude - Low0 in
