Hamm

HD+ 140 VV

Smooth Drum Roller

Operating Weight
30,159 lb
Max Speed
3.8 mph
Gross Power
134.2 hp
All smooth drum rollers

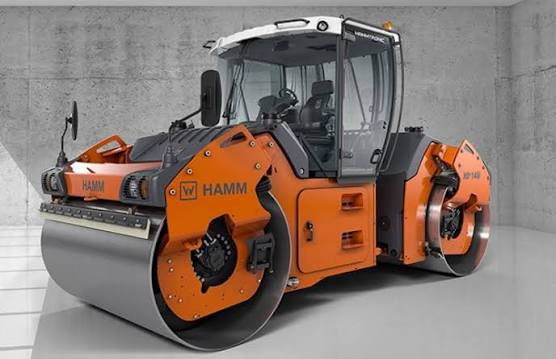

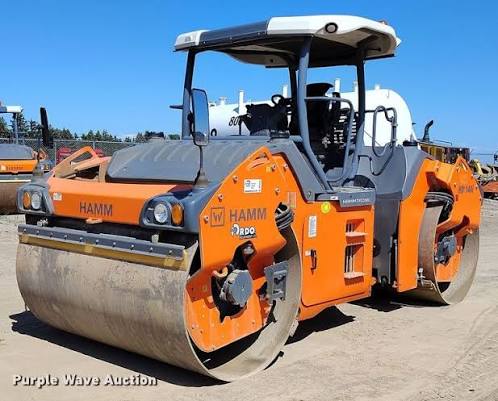

Hamm HD+ 140 VV Smooth Drum Roller
1 / 5
Image 1 of 5
Image: wirtgen-group.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,159 lb
Operating weight ROPS27,977 lb
Operating weight Cabin28,506 lb
Max Speed3.8 mph
Fuel Capacity47.6 gal
Operating Width89 in
Water Spray Tank Fluid Capacity306.5 gal
Steering Angle10 °

Engine

Engine specifications
Engine ModelTCD 2012 L04 2V
Gross Power134.2 hp
Net Power134.2 hp
Number of Cylinders4
Engine MakeDEUTZ

Dimensions

Dimensions specifications
Ground Clearance35 in
Height - Top of Cab121 in
Wheelbase142 in
Overall Length197 in
Track Width90 in

Drum

Drum specifications
Drum Diameter55 in
Nominal Amplitude - High0 in
Centrifugal Force - High35,745 lb
Vibration Frequency40 – 50 vpm
Centrifugal Force - Low21,357 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
Frequency2,400 – 3,000 vpm
