Hamm
BOMAG
BW 191 ADO-5
Smooth Drum Roller
35 specifications
1 / 5

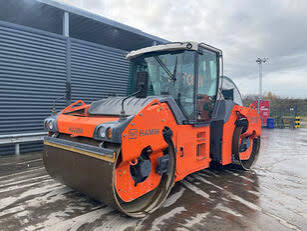

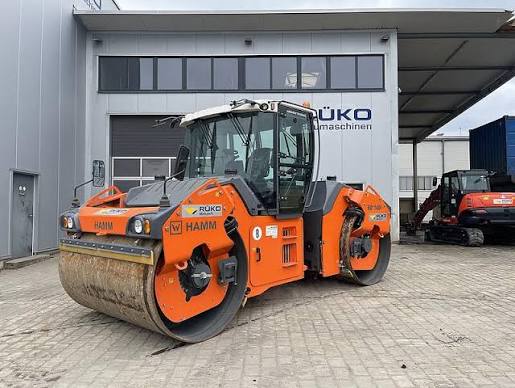

Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 30,799 lb |
|---|---|
| Operating weight ROPS | 28,252 lb |
| Operating weight Cabin | 28,781 lb |
| Max Speed | 3.8 mph |
| Fuel Capacity | 68.7 gal |
| Water Spray Tank Fluid Capacity | 302.5 gal |
| Oscillating angle | 10 ° |
| DEF tank capacity | 5.3 gal |
Engine
| Engine Model | TCD 4.1 L4 |
|---|---|
| Power Measured @ | 2,300 rpm |
| Gross Power | 154.3 hp |
| Net Power | 154.1 hp |
| Number of Cylinders | 4 |
| Engine Make | DEUTZ |
| Emission Tier Level | EPA Tier 4 |
Dimensions
| Ground Clearance | 36 in |
|---|---|
| Height - Top of Cab | 118 in |
| Wheelbase | 154 in |
| Overall Length | 209 in |
| Overall Width | 90 in |
| Turning Radius - Inside | 245 in |
General Specifications
| Engine type | DEUTZ TCD 4.1 L4 — Starting 2024 Model Year |
|---|---|
| DRUM WIDTH IN. (CM) | 84.3 (214) — Starting 2024 Model Year |
| INSIDE TURN RADIUS IN. (CM) | 244.1 (620) — Starting 2024 Model Year |
| WIDTH IN. (CM) | 89 (226) — Starting 2024 Model Year |
| FREQUENCY HZ | 40/50 — Starting 2024 Model Year |
Drum
| Drum Width | 84 in |
|---|---|
| Drum Diameter | 55 in |
| Vibration Frequency 1 | 40 vpm |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 40,466 lb |
| Vibration Frequency 2 | 50 vpm |
| Static Linear Load | 14 lb-ft |
| Centrifugal Force - Low | 21,357 lb |
| Nominal Amplitude - Low | 0 in |
| Drum thickness | 1 in |
| Oscillation force , rear -1 | 39,342 lb |
| Oscillation frequency , rear - 1 | 36 vpm |
| Tangential amplitude , rear - 1 | 0 in |

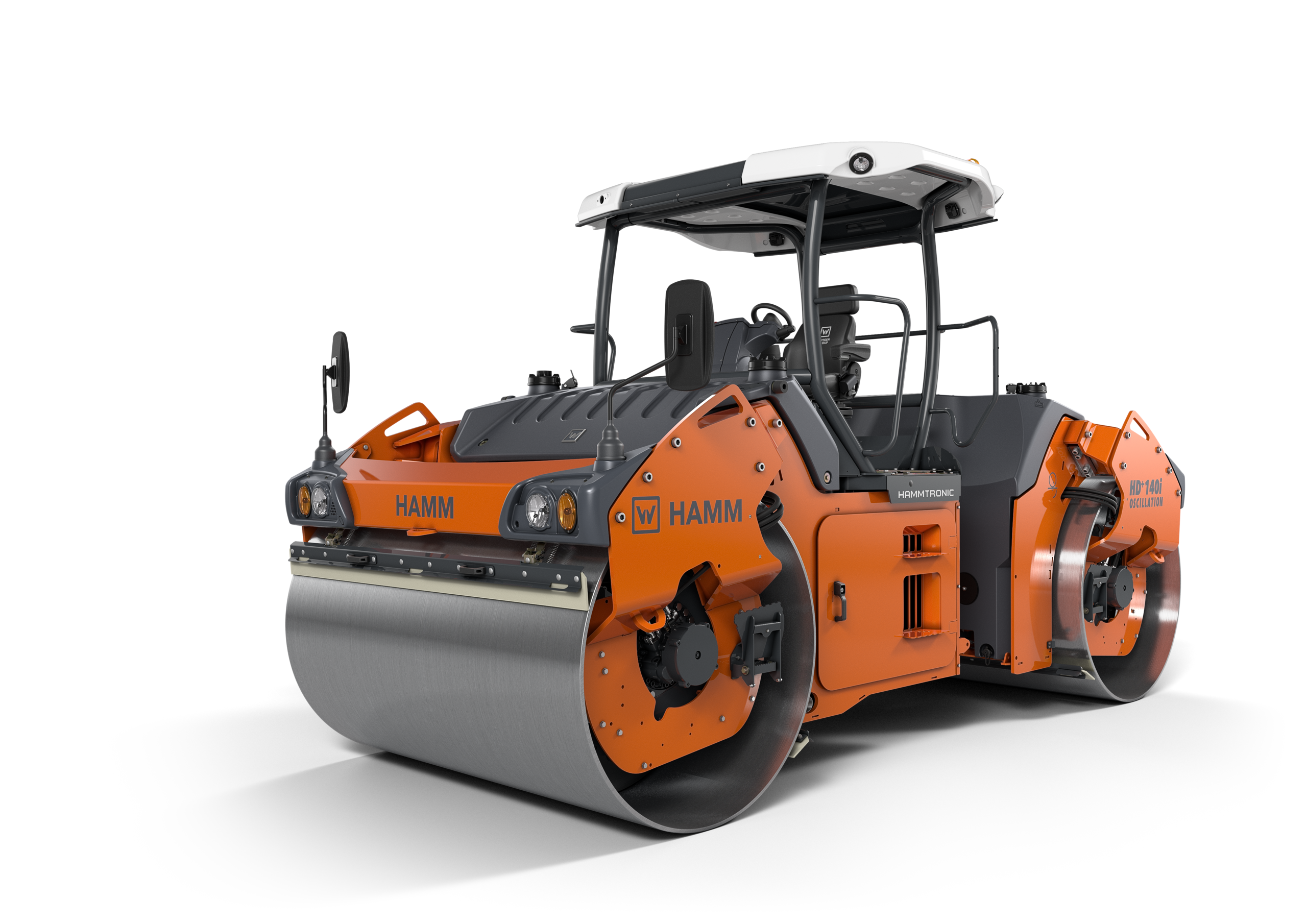

Comparable machines
