Hamm

HD+ 140i VV

Smooth Drum Roller

Operating Weight
30,358 lb
Max Speed
3.8 mph
Gross Power
154.3 hp
All smooth drum rollers

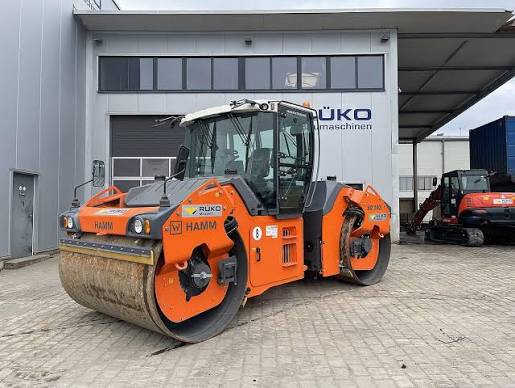

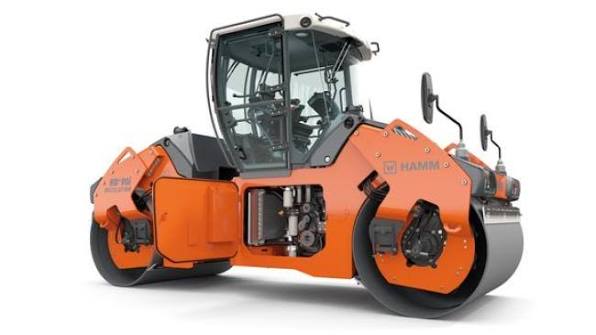

Hamm HD+ 140i VV Smooth Drum Roller
1 / 5
Image 1 of 5
Image: wirtgen-group.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,358 lb
Operating weight ROPS27,811 lb
Operating weight Cabin28,341 lb
Max Speed3.8 mph
Fuel Capacity68.7 gal
Operating Width89 in
Water Spray Tank Fluid Capacity302.5 gal
Steering Angle10 °

Engine

Engine specifications
Engine ModelTCD 4.1 L4
Gross Power154.3 hp
Net Power154.3 hp
Number of Cylinders4
Engine MakeDEUTZ
MakeDeutz

Dimensions

Dimensions specifications
Ground Clearance36 in
Height - Top of Cab118 in
Wheelbase154 in
Overall Length209 in
Overall Width90 in
Track Width90 in

General Specifications

General Specifications specifications
Engine typeDEUTZ TCD 4.1 L4 — Starting 2024 Model Year
DRUM WIDTH IN. (CM)84.3 (214) — Starting 2024 Model Year
INSIDE TURN RADIUS IN. (CM)244.1 (620) — Starting 2024 Model Year
WIDTH IN. (CM)89 (226) — Starting 2024 Model Year
FREQUENCY HZ40/50 — Starting 2019 Model Year

Drum

Drum specifications
Drum Diameter55 in
Nominal Amplitude - High0 in
Centrifugal Force - High40,466 lb
Vibration Frequency—
Centrifugal Force - Low21,357 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
