Hamm

HD+ 80i VO-S

Smooth Drum Roller

Operating Weight
22,928 lb
Max Speed
4.1 mph
Drum Width
66 in
Gross Power
74.3 hp
All smooth drum rollers

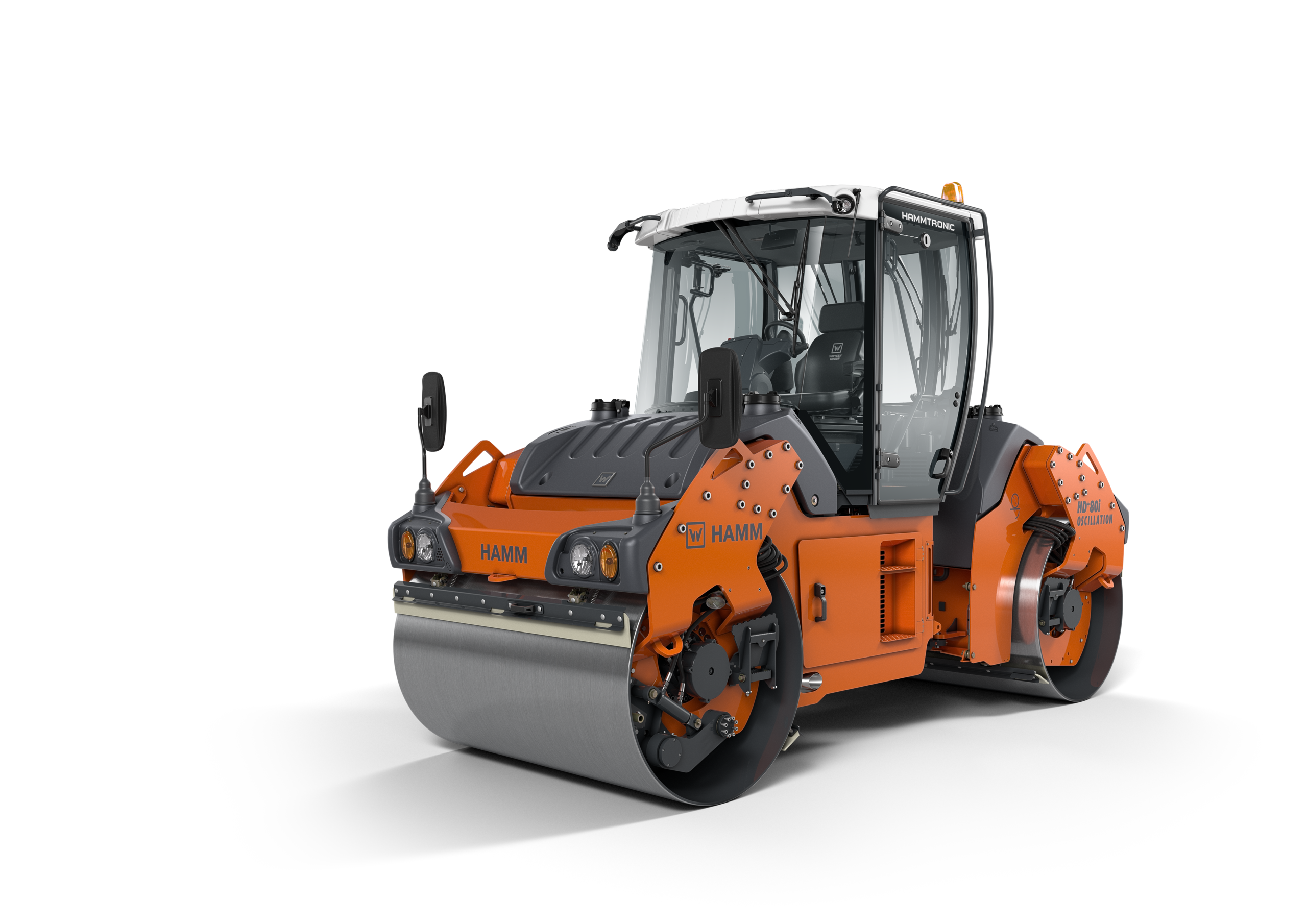

Hamm HD+ 80i VO-S Smooth Drum Roller
1 / 5
Image 1 of 5
Image: wirtgen-group.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,928 lb
Operating weight ROPS17,152 lb
Operating weight Cabin17,527 lb
Max Speed4.1 mph
Fuel Capacity31.8 gal
Water Spray Tank Fluid Capacity185.0 gal
Oscillating angle10 °

Engine

Engine specifications
Engine ModelTCD 2.9 L4
Power Measured @2,500 rpm
Gross Power74.3 hp
Net Power74.2 hp
Number of Cylinders4
Engine MakeDEUTZ
Emission Tier LevelEPA Tier 4

Dimensions

Dimensions specifications
Ground Clearance30 in
Height - Top of Cab114 in
Wheelbase132 in
Overall Length176 in
Overall Width60 in
Height - Top of ROPS/FOPS83 in
Turning Radius - Inside163 in

General Specifications

General Specifications specifications
Engine typeDEUTZ TCD 2.9 L4 — Starting 2024 Model Year
DRUM WIDTH IN. (CM)66.1 (168) — Starting 2024 Model Year
INSIDE TURN RADIUS IN. (CM)163 (414) — Starting 2024 Model Year
WIDTH IN. (CM)70.9 (180) — Starting 2024 Model Year
FREQUENCY HZ48/58 — Starting 2024 Model Year

Drum

Drum specifications
Drum Width66 in
Drum Diameter45 in
Vibration Frequency 142 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High14,163 lb
Vibration Frequency 250 vpm
Static Linear Load11 lb-ft
Centrifugal Force - Low14,163 lb
Nominal Amplitude - Low0 in
Drum thickness1 in
Oscillation force , rear -115,737 lb
Oscillation frequency , rear - 129 vpm
Tangential amplitude , rear - 10 in
Oscillation force , rear -222,031 lb
Oscillation frequency , rear - 235 vpm
Tangential amplitude , rear - 20 in
