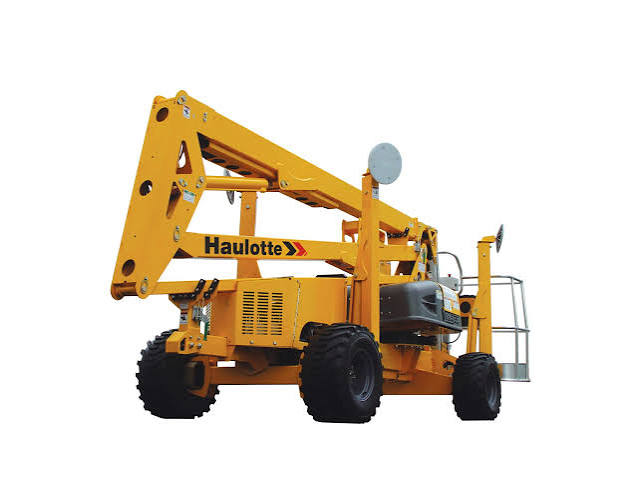

Haulotte
Mec
2647ES
Aerial Lift
21 specifications
1 / 5
Image 1 of 5
Specifications
25 data points
Engine
| Gross Power | 31.0 hp |
|---|---|
| Engine Make | Kubota |
| System Voltage | 6 V |
| Number of Batteries | 4 |
| Charger Amps | 260 |
Dimensions
| Ground Clearance | 6 in |
|---|---|
| Wheelbase | 107 in |
| Overall Length | 218 in |
| Overall Width | 67 in |
| Turning Radius | 65 in |
| Overall Height - mast lowered | 80 in |
| Gradeability | 45.0 % |
| Up and Over Height | 251 in |
| Outrigger Footprint Length | 137 in |
| Lift capacity to full height | 500 lb |
Performance
| Operating Weight | 5,200 lb |
|---|---|
| Tire Size | 26 x 12 Bar lug |
| Leveling capability | 13 ° |
| Turntable rotation | 350 ° |
Platform
| Max Platform Height | 540 in |
|---|---|
| Max Working Height | 612 in |
| Max Horizontal Reach | 324 in |
| Jib Range of Motion - Vertical | 150 ° |
| Jib Length | 52 in |
| Platform size | 31 in |
