Haulotte
Mec
2647ES

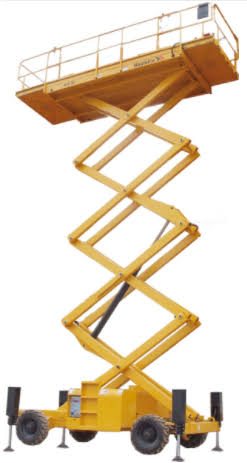

Aerial Lift
21 specifications
1 / 5
Image 1 of 5
Specifications
30 data points
Engine
| System Voltage | 24 V |
|---|---|
| Battery Amp Hours | 310 |
Dimensions
| Ground Clearance | 6 in |
|---|---|
| Wheelbase | 73 in |
| Overall Length | 98 in |
| Overall Width | 39 in |
| Overall Height | 85 in |
| Turning Radius | 98 in |
| Gradeability | 23.0 % |
| Stowed Width | 48 in |
| Stowed Height | 95 in |
| Boom Type/Size | 38.90 ft (11.86 m) |
| Platform Size | 128 in |
Tires & Wheels
| Tire Size | 15x5 |
|---|
Performance
| Operating Weight | 5,466 lb |
|---|---|
| Max Speed | 1.8 mph |
| Tire Size | 15x5 |
| Hydraulic System Fluid Capacity | 7.0 gal |
| Tire Fill/Type | Foam |
Capacity
| Platform Capacity | 662 lb |
|---|
Platform
| Max Platform Height | 395 in |
|---|---|
| Max Platform Weight Capacity | 660 lb |
| Max Working Height | 467 in |
| Lift Time | 58.0 s |
| Deck Extension | 36 in |
| Lower Time | 52.0 s |
| Extended platform length | 128 in |
| Platform Extension length | 36 in |
| Platform length - outside | 93 in |
| Platform width - outside | 39 in |
