Haulotte

H16 TPX

Aerial Lift

Max Platform Height
529 in
Overall Length
28 in
Overall Width
91 in
All aerial lifts

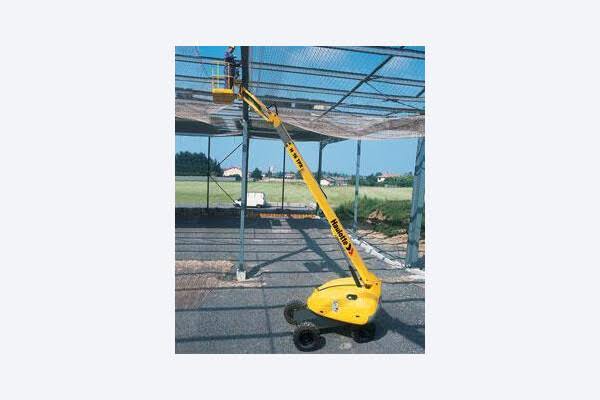

Haulotte H16 TPX Aerial Lift
1 / 5
Image 1 of 5
Image: manliftgroup.com

Specifications

21 data points

Engine

Engine specifications
Gross Power41.6 hp
Fuel TypeDiesel

Dimensions

Dimensions specifications
Ground Clearance14 in
Wheelbase79 in
Overall Length28 in
Overall Width91 in
Turning Radius190 in
Overall Height - mast lowered88 in

Performance

Performance specifications
Operating Weight14,661 lb
Max Speed3.8 mph
Tire Size14-17.5
Hydraulic System Fluid Capacity39.7 gal
Tire Fill/Typefoam filled/Sks Hauler
Fuel Capacity39.7 gal

Platform

Platform specifications
Max Platform Height529 in
Max Platform Weight Capacity507 lb
Platform Inner Length71 in
Platform Inner Width32 in
Max Working Height608 in
Max Horizontal Reach485 in
Platform Rotation180 °
