Hbxg

SD-7

Crawler Dozer

Operating Weight
52,470 lb
Max Speed - Forward
6.8 mph
Gross Power
217.3 hp
All crawler dozers

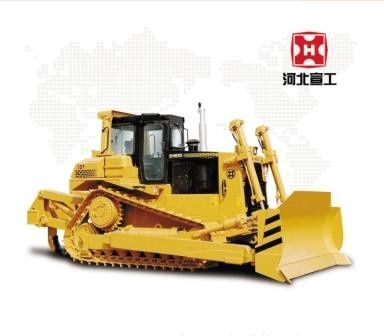

Hbxg SD-7 Crawler Dozer
1 / 5
Image 1 of 5
Image: machineryafrican.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight52,470 lb

Engine

Engine specifications
Engine ModelCQNTA855-C280
Displacement854 in³
Power Measured @2,100 rpm
Gross Power217.3 hp
Number of Cylinders6
Torque Measured @1,450 rpm
Max Torque738 lb-ft

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab134 in
Length of Track on Ground114 in
Length w/ Blade300 in

Transmission

Transmission specifications
Max Speed - Forward6.8 mph
Max Speed - Reverse8.3 mph
Transmission TypePowershift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure11 psi
Track Gauge78 in
Standard Shoe Size22 in

Standard Blade

Standard Blade specifications
Width151 in
Height50 in
Capacity8.31 yd³
