Heli
Komatsu
FG25T-12
Forklift
32 specifications
1 / 5

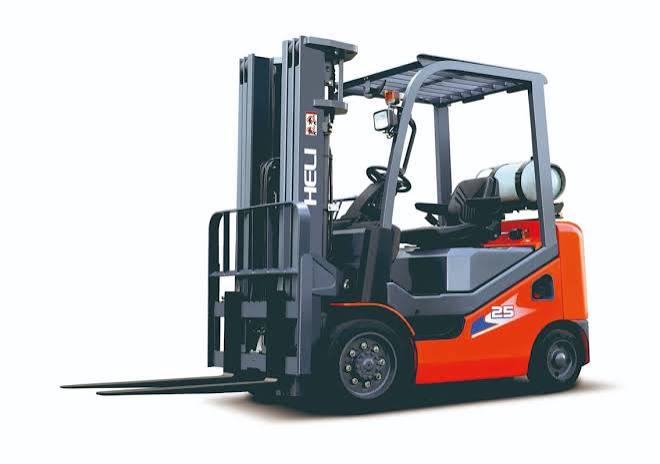

Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight | 8,157 lb |
|---|---|
| Max Speed | 10.6 mph |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Tire Type | front 7.00-12-12PR rear 6.00-9-10PR |
Engine
| Engine Model | C240PKJ |
|---|---|
| Power Measured @ | 2,500 rpm |
| Torque Measured @ | 1,800 rpm |
| Power | 46.3 hp |
| Fuel Type | diesel |
| Torque | 103 lb-ft |
Dimensions
| Ground Clearance | 4 in |
|---|---|
| Wheelbase | 64 in |
| Overall Width | 46 in |
| Turning Radius | 89 in |
| Overall Height - mast lowered | 84 in |
| Length to Fork Face | 101 in |
| Height to Top of Overhead Guard | 81 in |
| Max Fork Height | 119 in |
| Right Angle Stack | 79 in |
Mast
| Load Capacity | 5,512 lb |
|---|---|
| Load Center | 20 in |
| Lift Speed | 1.2 mph |
| Mast Tip Forward | 6 ° |
| Mast Tip Rear | 12 ° |
| Max Fork Spread | 40 in |
