Hitachi

AH250D

Off-Highway Truck

Max Speed
33.0 mph
Gross Power
275.0 hp
Net Power
265.0 hp
All off-highway trucks

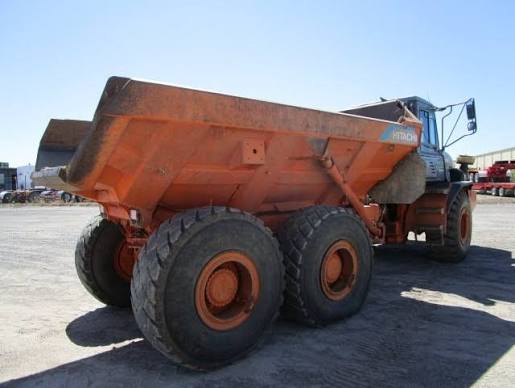

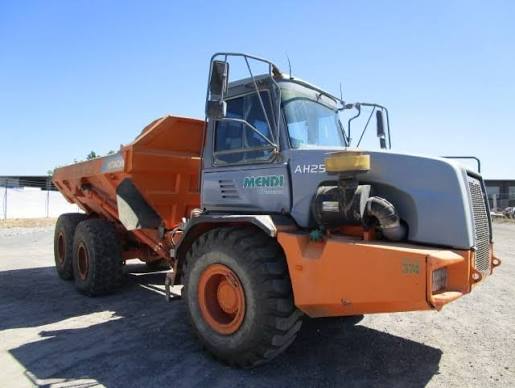

Hitachi AH250D Off-Highway Truck
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity89.9 gal
Tire Size23.5R25 Radial Earthmover
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelMercedesBenz OM906LA
Displacement389 in³
Gross Power275.0 hp
Net Power265.0 hp
AspirationTurbocharged & intercooled
Max Torque970 lb-ft

Weights

Weights specifications
Total Empty38,581 lb
Front Axle - empty20,613 lb
Total Loaded89,728 lb
Rear Axle - empty8,819 lb
Front Axle - loaded27,337 lb
Rear Axle - loaded31,030 lb
Center Axle - empty9,149 lb
Center Axle - loaded31,361 lb

Dimensions

Dimensions specifications
Ground Clearance22 in
Wheelbase198 in
Overall Length374 in
Overall Width114 in
Overall Height135 in
Dump Height241 in
Dump Ground Clearance26 in

Transmission

Transmission specifications
Max Speed33.0 mph
Transmission TypeZF 6HP592C with integral retarder
Number of Forward Gears6
Number of Reverse Gears1

Dump

Dump specifications
Rated Payload51,147 lb
Dump Angle70 °
Raise Time12.0 s
Lower Time6.0 s
Capacity - Heaped18.10 yd³
Capacity - Struck13.80 yd³
