Hitachi

AH300D

Off-Highway Truck

Max Speed
33.0 mph
Gross Power
275.0 hp
Net Power
265.0 hp
All off-highway trucks

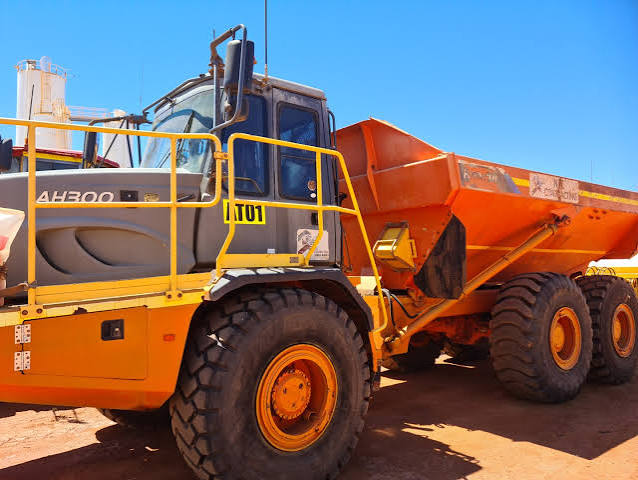

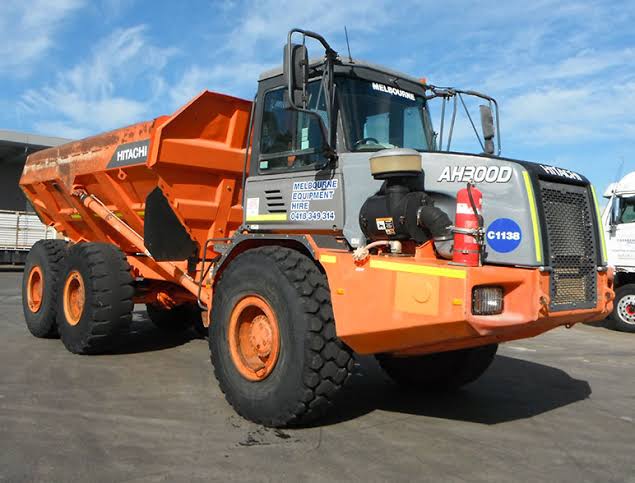

Hitachi AH300D Off-Highway Truck
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity89.9 gal
Tire Size23.5R25 Radial Earthmover
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelMercedesBenz OM906LA
Displacement389 in³
Gross Power275.0 hp
Net Power265.0 hp
AspirationTurbocharged & Intercooled
Max Torque1,070 lb-ft

Weights

Weights specifications
Total Empty39,683 lb
Front Axle - empty21,054 lb
Total Loaded99,869 lb
Rear Axle - empty9,149 lb
Front Axle - loaded29,101 lb
Rear Axle - loaded35,219 lb
Center Axle - empty9,480 lb
Center Axle - loaded35,550 lb

Dimensions

Dimensions specifications
Ground Clearance22 in
Wheelbase198 in
Overall Length378 in
Overall Width118 in
Overall Height135 in
Dump Height245 in
Dump Ground Clearance24 in

Transmission

Transmission specifications
Max Speed33.0 mph
Transmission TypeZF 6HP592C with integral retarder
Number of Forward Gears6
Number of Reverse Gears1

Dump

Dump specifications
Rated Payload60,186 lb
Dump Angle70 °
Raise Time12.0 s
Lower Time6.0 s
Capacity - Heaped21.80 yd³
Capacity - Struck16.49 yd³
