Hitachi

AH400D

Off-Highway Truck

Max Speed
32.4 mph
Gross Power
422.0 hp
Net Power
413.0 hp
All off-highway trucks

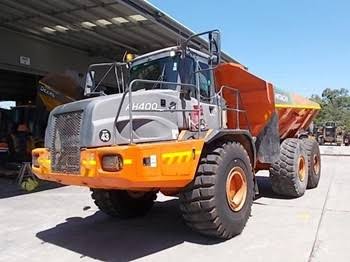

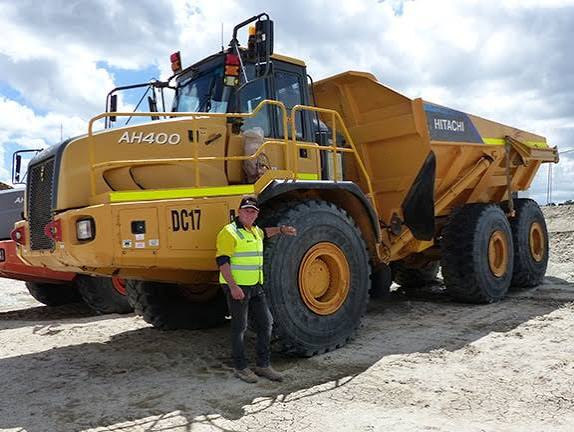

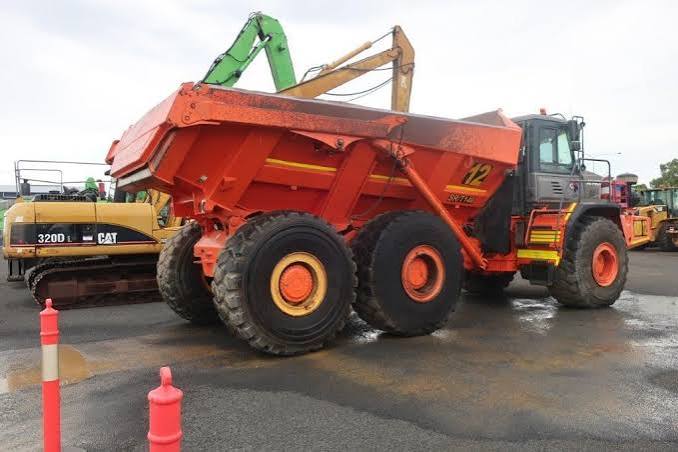

Hitachi AH400D Off-Highway Truck
1 / 5
Image 1 of 5
Image: tradetrucks.com.au

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity128.2 gal
Tire Size29.5R25 Radial Earthmover
Operating Voltage24 V
Alternator Supplied Amperage100 A

Engine

Engine specifications
Engine ModelMercedesBenz Im501LA
Displacement729 in³
Gross Power422.0 hp
Net Power413.0 hp
AspirationTurbocharged & Intercooled
Max Torque1,974 lb-ft

Weights

Weights specifications
Total Empty63,600 lb
Front Axle - empty32,220 lb
Total Loaded145,200 lb
Rear Axle - empty15,340 lb
Front Axle - loaded42,760 lb
Rear Axle - loaded50,850 lb
Center Axle - empty16,050 lb
Center Axle - loaded51,570 lb

Dimensions

Dimensions specifications
Ground Clearance24 in
Wheelbase137 in
Overall Length415 in
Overall Width133 in
Overall Height285 in
Dump Height285 in
Dump Ground Clearance26 in

Transmission

Transmission specifications
Max Speed32.4 mph
Transmission TypeAllison HD4500R with integral retarder
Number of Forward Gears6
Number of Reverse Gears1

Dump

Dump specifications
Rated Payload81,571 lb
Dump Angle70 °
Raise Time13.0 s
Lower Time8.0 s
Capacity - Heaped29.49 yd³
Capacity - Struck22.20 yd³
