Hitachi

CC150-3A

Smooth Drum Roller

Operating Weight
9,105 lb
Max Speed
6.3 mph
Drum Width
51 in
All smooth drum rollers

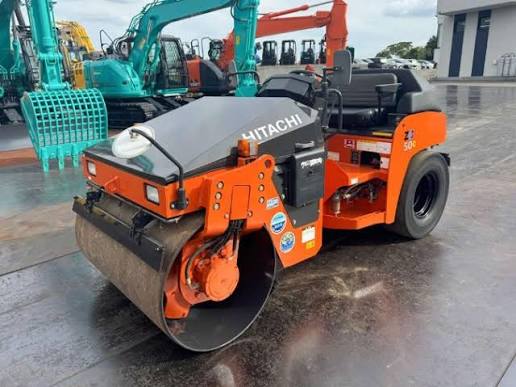

Hitachi CC150-3A Smooth Drum Roller
1 / 5
Image 1 of 5
Image: valuetrackpart.com

Specifications

17 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,105 lb
Max Speed6.3 mph
Fuel Capacity13.3 gal

Engine

Engine specifications
Engine ModelD1703-EDM
Displacement101 in³
Power Measured @2,400 rpm
Net Power28.3 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab62 in
Wheelbase8 in
Overall Length10 in

Drum

Drum specifications
Drum Width51 in
Drum Diameter32 in
Vibration Frequency 155 vpm
Static Linear Load7 lb-ft
Centrifugal Force - MEd5,508 lb
