Hitachi

EH3500 AC-2

Off-Highway Truck

Operating Weight
681,200 lb
Max Speed
34.8 mph
Gross Power
2,000.0 hp
Net Power
1,874.0 hp
All off-highway trucks

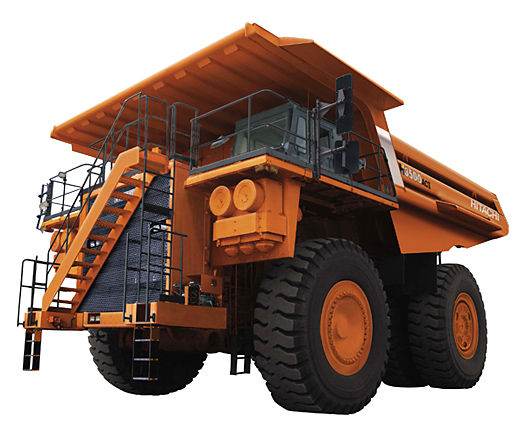

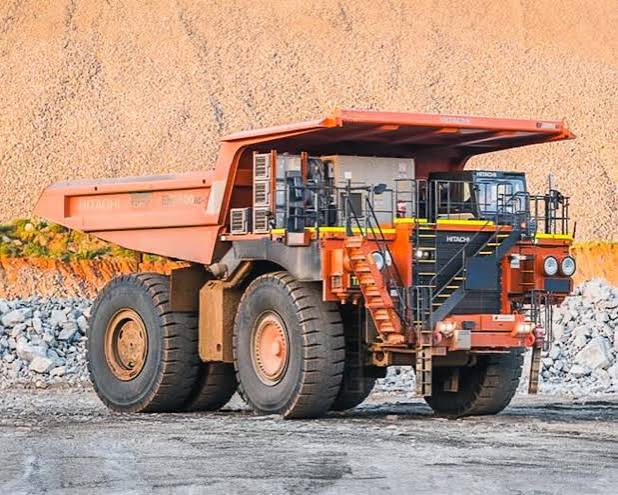

Hitachi EH3500 AC-2 Off-Highway Truck
1 / 5
Image 1 of 5
Image: hitachicm.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity779.3 gal
Tire Size37.00R57 E4 Radials
Engine Oil Capacity52.9 gal
Cooling System Fluid Capacity140.3 gal
Hydraulic System Fluid Capacity208.5 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelQSK50
Displacement3,070 in³
Power Measured @1,900 rpm
Gross Power2,000.0 hp
Net Power1,874.0 hp
Number of Cylinders16
AspirationTurbocharged
Torque Measured @—
MakeCummins
Rated Engine Speed209 rpm

Weights

Weights specifications
Operating Weight681,200 lb
Front Axle - empty—
Empty Weight308,642 lb
Loaded Weight716,490 lb
Weight Distribution Front - loaded31.0 %
Weight Distribution Rear - loaded69.0 %
Weight Distribution Front - empty48.0 %
Weight Distribution Rear - empty52.0 %

Dimensions

Dimensions specifications
Overall Length531 in
Overall Width316 in
Overall Height268 in

Transmission

Transmission specifications
Max Speed34.8 mph

Drive System

Drive System specifications
Drive ConfigRWD

Service Refill Capacities

Service Refill Capacities specifications
Brake/Hoist Hydraulic Tank407,810.8 gal

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidRigid

Dump

Dump specifications
Rated Payload407,855 lb
Raise Time17.5 s
Lower Time13.0 s
Load Capacity - heaped145.20 yd³
Load Capacity - Struck96.80 yd³
