Terex

MT5500AC

Off-Highway Truck

Max Speed
40.4 mph
Net Power
3,649.0 hp
All off-highway trucks

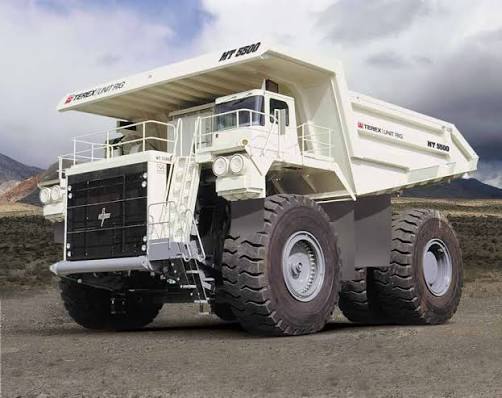

Terex MT5500AC Off-Highway Truck
1 / 5
Image 1 of 5
Image: machinerylink.com

Specifications

16 data points

Operating Specifications

Operating Specifications specifications
Tire Size55/80R63
Alternator Supplied Amperage—

Engine

Engine specifications
Engine Model20V4000
Net Power3,649.0 hp
Number of Cylinders20

Weights

Weights specifications
Empty Weight477,918 lb

Dimensions

Dimensions specifications
Overall Length582 in
Overall Width362 in
Overall Height302 in

Transmission

Transmission specifications
Max Speed40.4 mph
Transmission TypeAC Drive

Service Refill Capacities

Service Refill Capacities specifications
Brake/Hoist Hydraulic Tank718,628.7 gal

Dump

Dump specifications
Dump Angle45 °
Raise Time20.0 s
Lower Time20.0 s
Load Capacity - heaped285.19 yd³
