960E-1
Off-Highway Truck
35 specifications
1 / 5

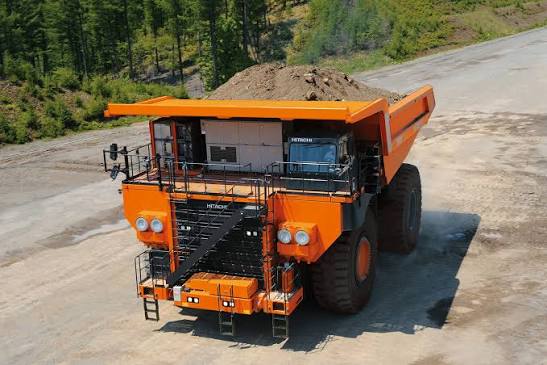

Image 1 of 5
Specifications
36 data points
Operating Specifications
| Fuel Capacity | 1,250.0 gal |
|---|---|
| Engine Oil Capacity | 63.5 gal |
| Cooling System Fluid Capacity | 194.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 260 A |
| Steering System Fluid Capacity | 76.9 gal |
| Diff and Final Drive Fluid Capacity | 59.0 gal |
| Brake/Hoist System Fluid Capacity | 255.0 gal |
Engine
| Engine Model | 16V-4000C23 |
|---|---|
| Displacement | 4,656 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 2,700.9 hp |
| Net Power | 2,542.6 hp |
| Number of Cylinders | 16 |
| Max Torque | 8,340 lb-ft |
Weights
| Empty Weight | 462,971 lb |
|---|---|
| Loaded Weight | 1,102,310 lb |
| Weight Distribution Front - loaded | 33.0 % |
| Weight Distribution Rear - loaded | 67.0 % |
| Weight Distribution Front - empty | 49.0 % |
| Weight Distribution Rear - empty | 51.0 % |
Dimensions
| Ground Clearance | 36 in |
|---|---|
| Wheelbase | 267 in |
| Overall Length | 600 in |
| Overall Width | 354 in |
| Overall Height | 316 in |
| Dump Height | 570 in |
| Dump Ground Clearance | 86 in |
Transmission
| Max Speed | 37.3 mph |
|---|
Service Refill Capacities
| Brake/Hoist Hydraulic Tank | 639,270.3 gal |
|---|
Dump
| Dump Angle | 40 ° |
|---|---|
| Raise Time | 23.0 s |
| Lower Time | 22.0 s |
| Load Capacity - heaped | 269.49 yd³ |
| Load Capacity - Struck | 204.09 yd³ |
Approximate Weights - Flat Floor
| Body | 1,700 lb |
|---|
