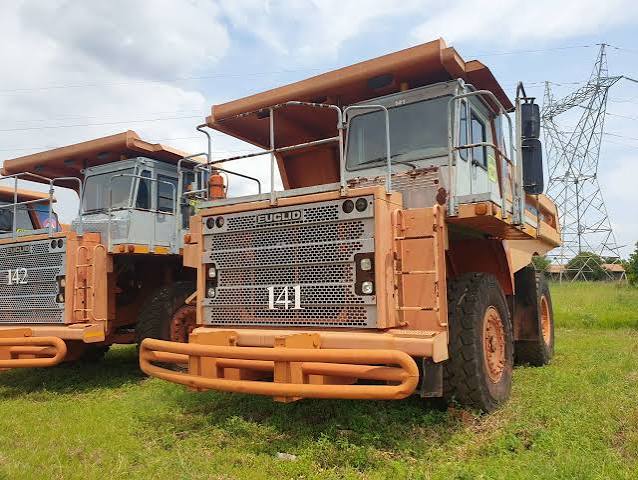

Hitachi
Terex
33-05B
Off-Highway Truck
19 specifications
1 / 5
Image 1 of 5
Specifications
39 data points
Operating Specifications
| Fuel Capacity | 120.0 gal |
|---|---|
| Tire Size | 18R33(**)E4 Radial |
| Engine Oil Capacity | 16.2 gal |
| Cooling System Fluid Capacity | 42.1 gal |
| Operating Voltage | 24 V |
| Steering System Fluid Capacity | 25.7 gal |
| Diff and Final Drive Fluid Capacity | 13.3 gal |
| Brake/Hoist System Fluid Capacity | 47.1 gal |
Engine
| Engine Model | QSX15-525 |
|---|---|
| Displacement | 915 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 525.0 hp |
| Net Power | 480.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | — |
Weights
| Front Axle - empty | — |
|---|---|
| Empty Weight | 78,044 lb |
| Loaded Weight | 166,229 lb |
| Weight Distribution Front - loaded | 33.0 % |
| Weight Distribution Rear - loaded | 67.0 % |
| Weight Distribution Front - empty | 50.0 % |
| Weight Distribution Rear - empty | 50.0 % |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Wheelbase | 150 in |
| Overall Length | 342 in |
| Overall Width | 189 in |
| Overall Height | 173 in |
| Dump Height | 323 in |
| Dump Ground Clearance | 19 in |
Transmission
| Max Speed | 42.4 mph |
|---|---|
| Transmission Type | Allison M5610A planeatary full automatic |
| Number of Gears - Forward | 6 |
| Number of Gears - Reverse | 2 |
Service Refill Capacities
| Brake/Hoist Hydraulic Tank | 84,990.7 gal |
|---|
Dump
| Dump Angle | 60 ° |
|---|---|
| Raise Time | 13.9 s |
| Lower Time | 14.0 s |
| Load Capacity - heaped | 36.30 yd³ |
| Load Capacity - Struck | 27.30 yd³ |

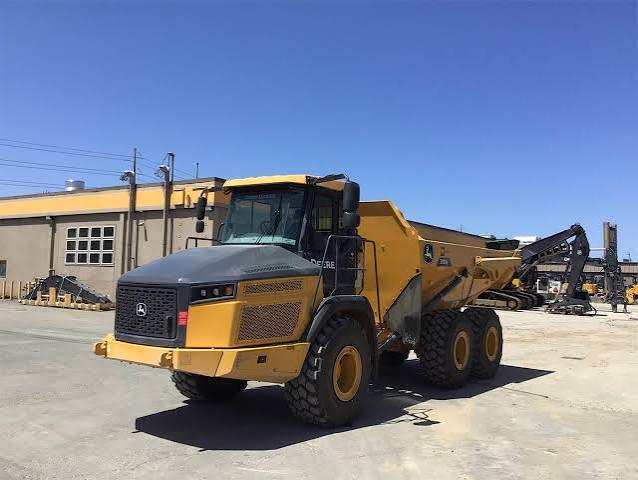

Comparable machines
