Hitachi
EX100-3
- Operating Weight
- 23,590 lb
- Max Digging Depth
- 189 in
- Max Digging Depth
- 200 in
- Net Power
- 76.5 hp
1 / 5

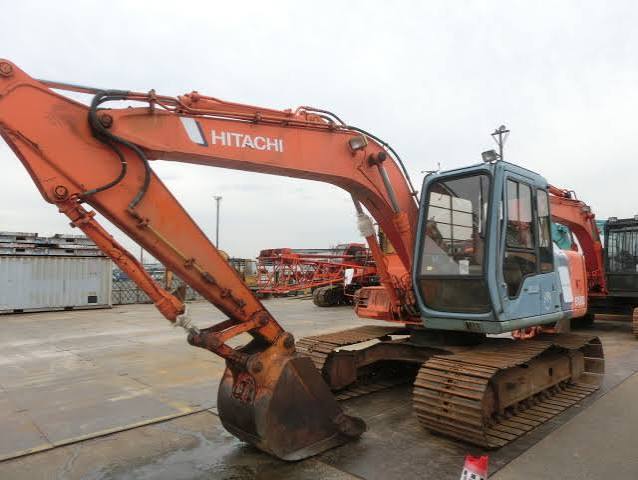

Image 1 of 5
Specifications
53 data points
Operating Specifications
| Operating Weight | 23,590 lb |
|---|---|
| Fuel Capacity | 66.1 gal |
| Hydraulic Pump Flow Capacity | 4.9 gal/min |
| Hydraulic System Relief Valve Pressure | 19 psi |
| Engine Oil Capacity | 3.9 gal |
| Cooling System Fluid Capacity | 4.4 gal |
| Operating Voltage | 24 V |
Engine
| Engine Model | 4BD1 |
|---|---|
| Displacement | 235 in³ |
| Power Measured @ | 2,300 rpm |
| Net Power | 76.5 hp |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 173 lb-ft |
| Engine Make | Isuzu |
| Bore | 4 in |
| Stroke | 5 in |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 107 in |
| Length of Track on Ground | 132 in |
| Tail Swing Radius | 84 in |
| Width to Outside of Tracks | 100 in |
| Removal Counterweight Clearance | 36 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 6 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 41 |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 18,951 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 189 in |
|---|---|
| Max Reach Along Ground | 288 in |
| Max Loading Height | 216 in |
| Max Vertical Wall Digging Depth | 170 in |
| Max Cutting Height | 309 in |
| Shipping Length of Unit | 283 in |
| Shipping Height of Unit | 103 in |
Bucket
| Maximum Bucket Capacity | 0.80 yd³ |
|---|
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 200 in |
|---|---|
| Max Vertical Wall Digging Depth | 182 in |
| Max Cutting Height | 317 in |
| Max Loading Height | 222 in |
| Max Reach Along Ground | 299 in |
| Shipping Length of Unit | 283 in |
| Shipping Height of Unit | 107 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 222 in |
|---|---|
| Max Cutting Height | 325 in |
| Max Loading Height | 231 in |
| Max Vertical Wall Digging Depth | 202 in |
| Max Reach Along Ground | 318 in |
| Shipping Length of Unit | 283 in |
| Shipping Height of Unit | 106 in |
