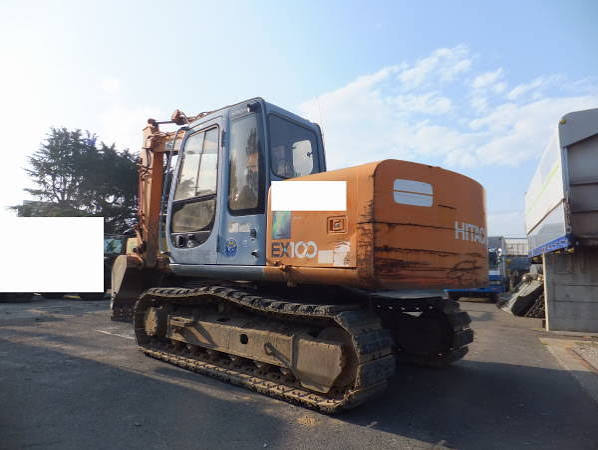

Hitachi
EX100-5
- Operating Weight
- 23,600 lb
- Max Digging Depth
- 189 in
- Max Digging Depth
- 200 in
- Net Power
- 76.0 hp
1 / 5
Image 1 of 5
Specifications
53 data points
Operating Specifications
| Operating Weight | 23,600 lb |
|---|---|
| Fuel Capacity | 66.1 gal |
| Hydraulic Pump Flow Capacity | 50.2 gal/min |
| Hydraulic System Fluid Capacity | 35.4 gal |
| Hydraulic System Relief Valve Pressure | 4,890 psi |
| Engine Oil Capacity | 3.9 gal |
| Cooling System Fluid Capacity | 4.9 gal |
| Swing Drive Fluid Capacity | 0.9 gal |
Engine
| Engine Model | A-4BG1 |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 76.0 hp |
| Aspiration | Natural |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 209 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 108 in |
| Length of Track on Ground | 103 in |
| Tail Swing Radius | 84 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 36 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 6 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 41 |
| Number of Carrier Rollers per Side | 1 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 189 in |
|---|---|
| Max Reach Along Ground | 288 in |
| Max Loading Height | 219 in |
| Max Vertical Wall Digging Depth | 170 in |
| Max Cutting Height | 313 in |
| Shipping Length of Unit | 283 in |
| Shipping Height of Unit | 108 in |
Bucket
| Reference Bucket Capacity | 0.41 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.80 yd³ |
| Minimum Bucket Capacity | 0.30 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 200 in |
|---|---|
| Max Vertical Wall Digging Depth | 182 in |
| Max Cutting Height | 320 in |
| Max Loading Height | 226 in |
| Max Reach Along Ground | 299 in |
| Shipping Length of Unit | 283 in |
| Shipping Height of Unit | 108 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 222 in |
|---|---|
| Max Cutting Height | 330 in |
| Max Loading Height | 235 in |
| Max Vertical Wall Digging Depth | 202 in |
| Max Reach Along Ground | 318 in |
| Shipping Length of Unit | 284 in |
| Shipping Height of Unit | 108 in |
