JCB
8010 CTS
Mini Excavator
34 specifications
1 / 5

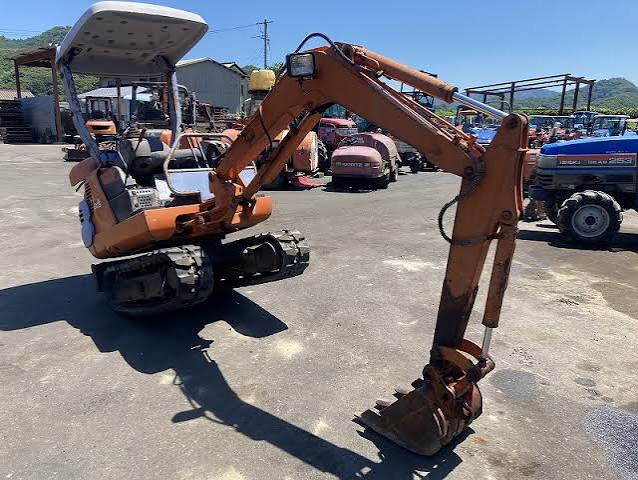

Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 3,197 lb |
|---|---|
| Fuel Capacity | 5.3 gal |
| Hydraulic Pump Flow Capacity | 8.5 gal/min |
| Hydraulic System Fluid Capacity | 8.0 gal |
| Hydraulic System Relief Valve Pressure | 3,058 psi |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 36 A |
| Engine Oil Capacity | 1.2 gal |
| Cooling System Fluid Capacity | 1.0 gal |
Engine
| Engine Model | D1105-KA |
|---|---|
| Displacement | 69 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 17.3 hp |
| Number of Cylinders | 3 |
| Aspiration | Natural |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 47 lb-ft |
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Height - Top of Cab | 90 in |
| Length of Track on Ground | 41 in |
| Tail Swing Radius | 42 in |
| Width to Outside of Tracks | 40 in |
| Removal Counterweight Clearance | 18 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 31 in |
| Number of Track Rollers per Side | 3 |
| Max Travel Speed | 1.5 mph |
| Shoe Size | 9 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 86 in |
|---|---|
| Max Reach Along Ground | 145 in |
| Max Vertical Wall Digging Depth | 65 in |
| Max Loading Height | 93 in |
| Shipping Length of Unit | 144 in |
| Max Cutting Height | 128 in |
| Shipping Height of Unit | 90 in |
Bucket
| Reference Bucket Capacity | 0.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.10 yd³ |
| Minimum Bucket Capacity | 0.10 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
