Hitachi
Caterpillar
5130B
Mini Excavator
16 specifications
1 / 5

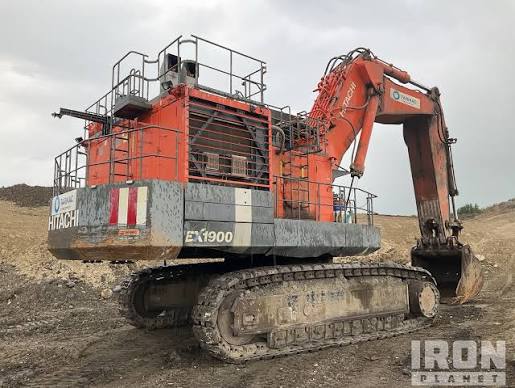

Image 1 of 5
Specifications
56 data points
Operating Specifications
| Fuel Capacity | 814.9 gal |
|---|---|
| Hydraulic System Fluid Capacity | 581.1 gal |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 45.5 gal |
| Cooling System Fluid Capacity | 51.6 gal |
| Swing Speed | 5 rpm |
Engine
| Engine Model | S12A2-Y1TAA1 |
|---|---|
| Displacement | 2,069 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 1,025.0 hp |
| Net Power | 965.0 hp |
| Number of Cylinders | 12 |
| Aspiration | turbo-charged air-cooled intercooler |
Dimensions
| Height - Top of Cab | 269 in |
|---|---|
| Length of Track on Ground | 228 in |
| Tail Swing Radius | 238 in |
| Upper Structure Ground Clearance | 79 in |
| Length of Tracks | 295 in |
Undercarriage
| Max Travel Speed | 1.8 mph |
|---|---|
| Number of Upper Rollers | 3 |
| Loading Shovel Operating Weight | 409,839 lb |
| Loading Shovel Shoe Width | 32 in |
| Loading Shovel Ground Pressure | 26 psi |
| Number of Lower Rollers | 8 |
| Backhoe Shoe Width 1 | 32 in |
| Backhoe Operating Weight - Shoe 1 | 411,162 lb |
| Backhoe Ground Pressure - Shoe 1 | 26 psi |
| Number of Track Shoes per Side | 49 |
| Tail Swing Radius | 238 in |
Bucket
| Reference Bucket Capacity | 14.40 yd³ |
|---|---|
| Maximum Bucket Capacity | 19.70 yd³ |
| Minimum Bucket Capacity | 14.40 yd³ |
Loading Shovel
| Max Dig Depth | 234 in |
|---|---|
| Max Dig Reach | 529 in |
| Max Cutting Height | 576 in |
| Max Dump Height | 411 in |
| Arm Crowd Force | 524 lb-ft |
| Loading Shovel | standard |
Backhoe Boom / Stick 1
| Max Dig Depth | 323 in |
|---|---|
| Max Cutting Height | 557 in |
| Max Dump Height | 357 in |
| Max Reach on Ground | 582 in |
| Max Vertical Wall Dig Depth | 152 in |
| Arm Crowd Force | 457 lb-ft |
Backhoe Boom / Stick 2
| Max Dig Depth | 364 in |
|---|---|
| Max Cutting Height | 571 in |
| Max Dump Height | 362 in |
| Max Reach on Ground | 616 in |
| Max Vertical Wall Dig Depth | 261 in |
| Arm Crowd Force | 424 lb-ft |
Backhoe Boom / Stick 3
| Max Dig Depth | 465 in |
|---|---|
| Max Cutting Height | 685 in |
| Max Dump Height | 466 in |
| Max Reach on Ground | 750 in |
| Max Vertical Wall Dig Depth | 396 in |
| Arm Crowd Force | 424 lb-ft |
