Hitachi

EX200-2

Excavator

Operating Weight
40,786 lb
Max Digging Depth
227 in
Max Digging Depth
256 in
Net Power
131.5 hp
All excavators

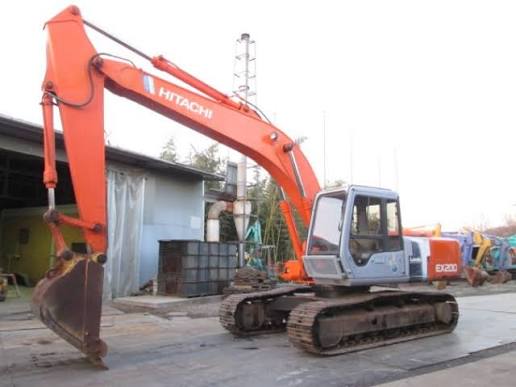

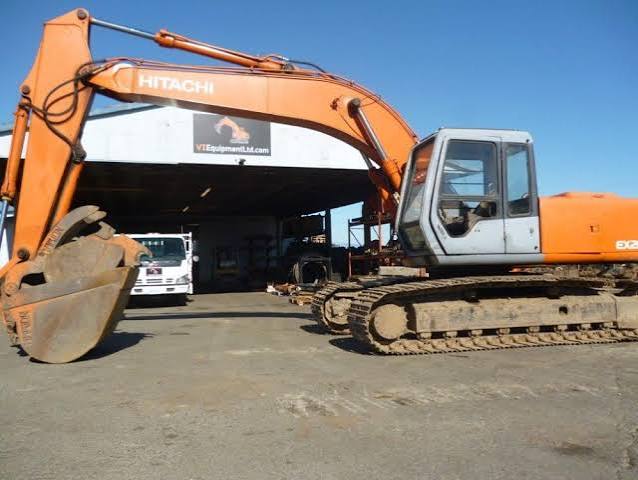

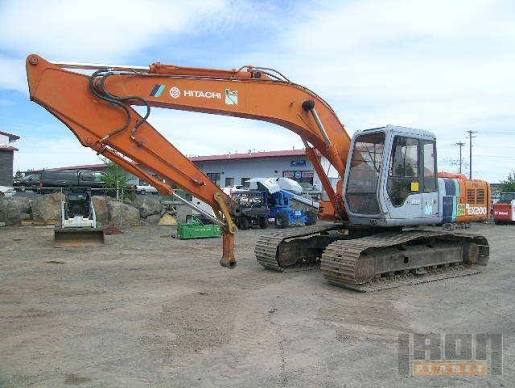

Hitachi EX200-2 Excavator
1 / 5
Image 1 of 5
Image: jikotrading.jp

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,786 lb
Hydraulic Pump Flow Capacity97.8 gal/min

Engine

Engine specifications
Engine Model6BD1T
Displacement18,917 in³
Power Measured @2,050 rpm
Net Power131.5 hp
Engine MakeIsuzu

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab113 in
Length of Track on Ground374 in
Tail Swing Radius109 in
Width to Outside of Tracks110 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Max Travel Speed3.5 mph
Drawbar Pull35,947 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth227 in
Max Reach Along Ground357 in
Max Loading Height252 in
Max Vertical Wall Digging Depth203 in
Max Cutting Height361 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth256 in
Max Vertical Wall Digging Depth239 in
Max Cutting Height378 in
Max Loading Height268 in
Max Reach Along Ground384 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth316 in
Max Cutting Height403 in
Max Loading Height293 in
Max Vertical Wall Digging Depth298 in
Max Reach Along Ground439 in
