Hitachi

EX22

Mini Excavator

Max Digging Depth
97 in
Gross Power
18.3 hp
Net Power
18.2 hp
All mini excavators

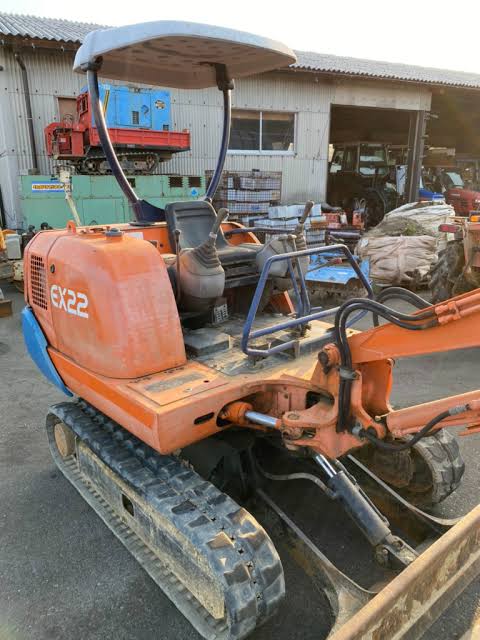

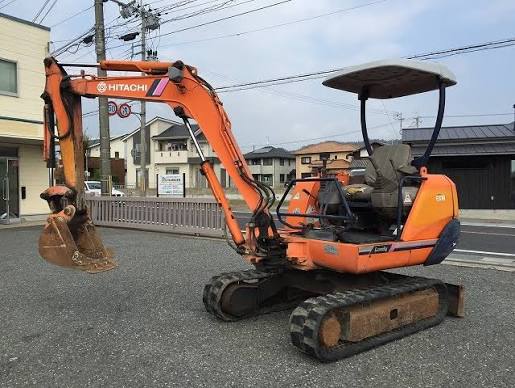

Hitachi EX22 Mini Excavator
1 / 5
Image 1 of 5
Image: toku-world.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity13.3 gal
Hydraulic System Fluid Capacity10.6 gal
Engine Oil Capacity1.4 gal
Cooling System Fluid Capacity1.6 gal

Engine

Engine specifications
Engine ModelD1105-KA
Displacement69 in³
Power Measured @2,200 rpm
Gross Power18.3 hp
Net Power18.2 hp
Torque Measured @1,500 rpm
Max Torque48 lb-ft
Engine MakeKubota

Dimensions

Dimensions specifications
Height - Top of Cab94 in
Tail Swing Radius11 in
Width to Outside of Tracks55 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.3 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth97 in
Max Vertical Wall Digging Depth77 in
