Hitachi
EX220-3
- Operating Weight
- 39,904 lb
- Max Digging Depth
- 250 in
- Max Digging Depth
- 275 in
- Net Power
- 155.6 hp
1 / 5

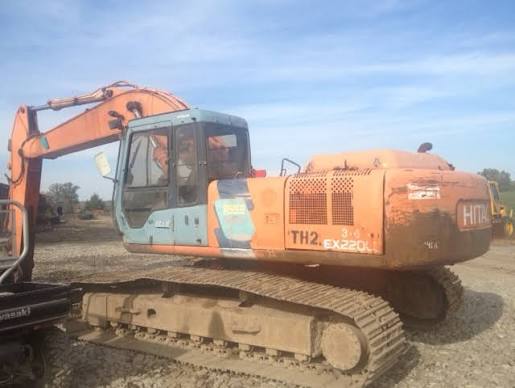

Image 1 of 5
Specifications
51 data points
Operating Specifications
| Operating Weight | 39,904 lb |
|---|---|
| Fuel Capacity | 81.9 gal |
| Hydraulic Pump Flow Capacity | 49.9 gal/min |
| Hydraulic System Fluid Capacity | 68.7 gal |
| Engine Oil Capacity | 6.9 gal |
| Cooling System Fluid Capacity | 7.2 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.5 gal |
Engine
| Engine Model | H06C-T |
|---|---|
| Displacement | 396 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 158.3 hp |
| Net Power | 155.6 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 391 lb-ft |
| Engine Make | Hino |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 115 in |
| Length of Track on Ground | 168 in |
| Tail Swing Radius | 117 in |
| Width to Outside of Tracks | 119 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Track Gauge | 95 in |
|---|---|
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 47 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 250 in |
|---|---|
| Max Reach Along Ground | 376 in |
| Max Loading Height | 258 in |
| Max Vertical Wall Digging Depth | 214 in |
| Max Cutting Height | 371 in |
| Shipping Length of Unit | 404 in |
| Shipping Height of Unit | 128 in |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 275 in |
|---|---|
| Max Vertical Wall Digging Depth | 238 in |
| Max Cutting Height | 379 in |
| Max Loading Height | 267 in |
| Max Reach Along Ground | 398 in |
| Shipping Length of Unit | 400 in |
| Shipping Height of Unit | 120 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 300 in |
|---|---|
| Max Cutting Height | 394 in |
| Max Loading Height | 280 in |
| Max Vertical Wall Digging Depth | 267 in |
| Max Reach Along Ground | 424 in |
| Shipping Length of Unit | 401 in |
| Shipping Height of Unit | 130 in |
