Terex

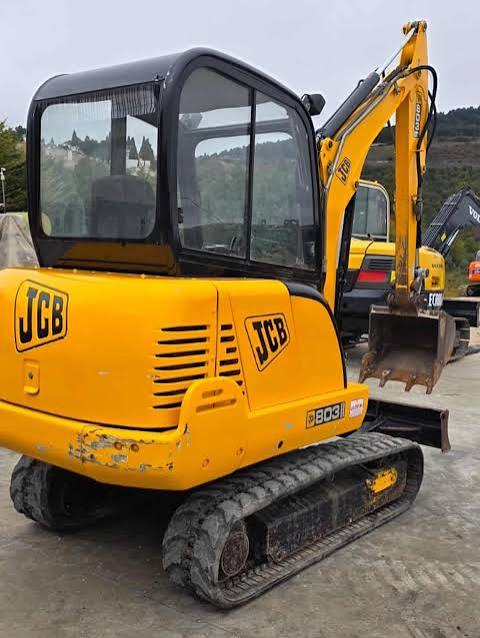

JCB
803 Super
Excavator
26 specifications
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 24,229 lb |
|---|---|
| Fuel Capacity | 63.5 gal |
| Hydraulic Pump Flow Capacity | 52.9 gal/min |
| Hydraulic System Fluid Capacity | 50.2 gal |
| Hydraulic System Relief Valve Pressure | 4,060 psi |
| Operating Voltage | 12 V |
| Hydraulic Pump Type | axial piston pump with load-sensing |
| Tire Size | 43728 |
| Oscillating Axle Angle | 26 ° |
| Max Steering Angle | 30 ° |
Engine
| Engine Model | BF4 M 2012 |
|---|---|
| Displacement | 244 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 91.0 hp |
| Number of Cylinders | 4 |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 119 in |
| Wheelbase | 103 in |
| Overall Width | 8 in |
| Tail Swing Radius | 64 in |
Transmission
| Max Travel Speed | 12.5 mph |
|---|---|
| Transmission Type | hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Maximum Bucket Capacity | 0.60 yd³ |
|---|---|
| Minimum Bucket Capacity | 0.20 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 170 in |
|---|---|
| Max Cutting Height | 325 in |
| Max Reach Along Ground | 328 in |
| Max Loading Height | 239 in |
| Max Vertical Wall Dig Depth | 145 in |
