Hitachi

EX300LC-5

Excavator

Operating Weight
69,500 lb
Max Digging Depth
292 in
Net Power
226.7 hp
All excavators

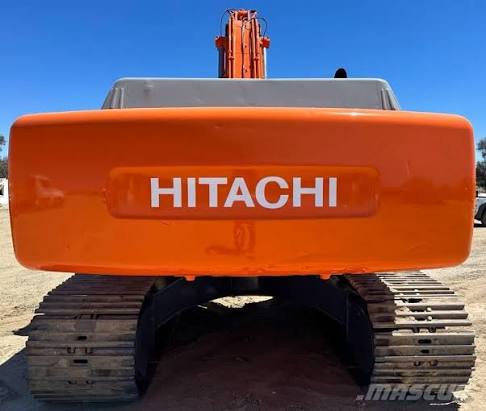

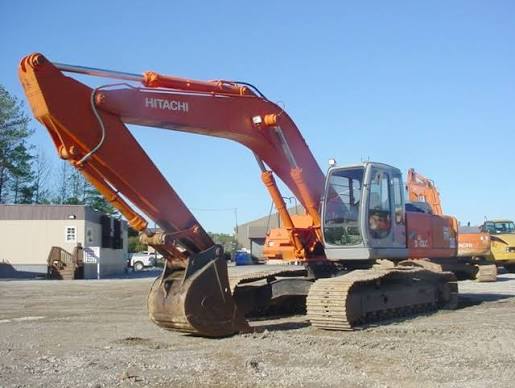

Hitachi EX300LC-5 Excavator
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight69,500 lb
Fuel Capacity148.0 gal
Hydraulic System Relief Valve Pressure4,980 psi

Engine

Engine specifications
Engine ModelB-6SD1T
Power Measured @1,900 rpm
Net Power226.7 hp

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab124 in
Length of Track on Ground159 in
Tail Swing Radius130 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance47 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge102 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth292 in
Max Reach Along Ground438 in
Max Loading Height281 in
Max Vertical Wall Digging Depth256 in
Max Cutting Height403 in
Shipping Length of Unit432 in
Shipping Height of Unit127 in

Bucket

Bucket specifications
Reference Bucket Capacity1.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm
