Komatsu

PC200EN-6

Excavator

Operating Weight
41,888 lb
Max Digging Depth
205 in
Max Digging Depth
222 in
Net Power
128.0 hp
All excavators

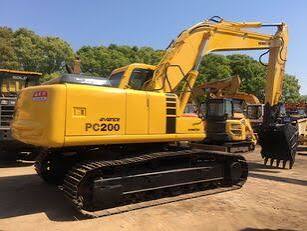

Komatsu PC200EN-6 Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

70 data points

Operating Specifications

Operating Specifications specifications
Operating Weight41,888 lb
Fuel Capacity66.0 gal
Hydraulic Pump Flow Capacity81.2 gal/min
Hydraulic System Fluid Capacity31.7 gal
Hydraulic System Relief Valve Pressure5,049 psi
Engine Oil Capacity7.0 gal
Cooling System Fluid Capacity5.9 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.1 gal
Alternator Supplied Amperage45 A

Engine

Engine specifications
Engine ModelS6D102
Displacement359 in³
Power Measured @2,200 rpm
Gross Power135.0 hp
Net Power128.0 hp
AspirationTurbocharged

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab114 in
Length of Track on Ground128 in
Tail Swing Radius106 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge79 in
Number of Track Rollers per Side7
Max Travel Speed3.2 mph
Shoe Size20 in
Number of Shoes per Side45
Number of Carrier Rollers per Side2
Drawbar Pull36,597 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth205 in
Max Reach Along Ground323 in
Max Loading Height243 in
Max Vertical Wall Digging Depth178 in
Max Cutting Height346 in
Shipping Length of Unit349 in
Shipping Height of Unit124 in

Bucket

Bucket specifications
Reference Bucket Capacity0.99 yd³
Maximum Bucket Capacity1.60 yd³
Minimum Bucket Capacity0.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth222 in
Max Vertical Wall Digging Depth199 in
Max Cutting Height349 in
Max Loading Height246 in
Max Reach Along Ground336 in
Shipping Length of Unit347 in
Shipping Height of Unit118 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth235 in
Max Cutting Height350 in
Max Loading Height250 in
Max Vertical Wall Digging Depth224 in
Max Reach Along Ground347 in
Shipping Length of Unit347 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth247 in
Max Cutting Height357 in
Max Reach Along Ground357 in
Max Loading Height256 in
Max Vertical Wall Dig Depth227 in
Shipping Length of Unit347 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth199 in
Max Reach Along Ground325 in
Max Cutting Height357 in
Max Loading Height252 in
Max Vertical Wall Dig Depth161 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth215 in
Max Reach Along Ground339 in
Max Cutting Height364 in
Max Loading Height258 in
Max Vertical Wall Dig Depth174 in
