Hitachi

EX3600

Mini Excavator

Gross Power
1,880.0 hp
Net Power
1,880.0 hp
All mini excavators

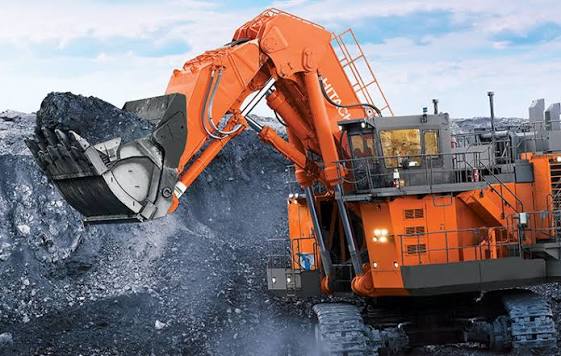

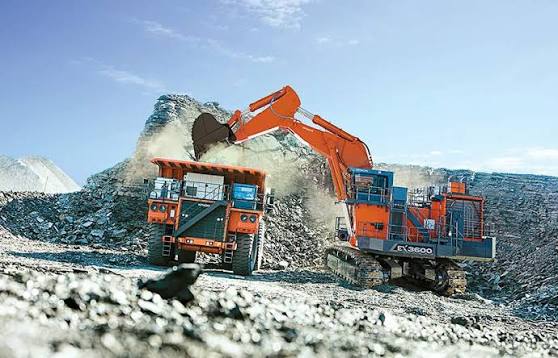

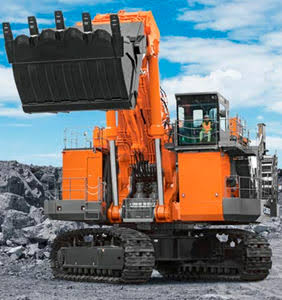

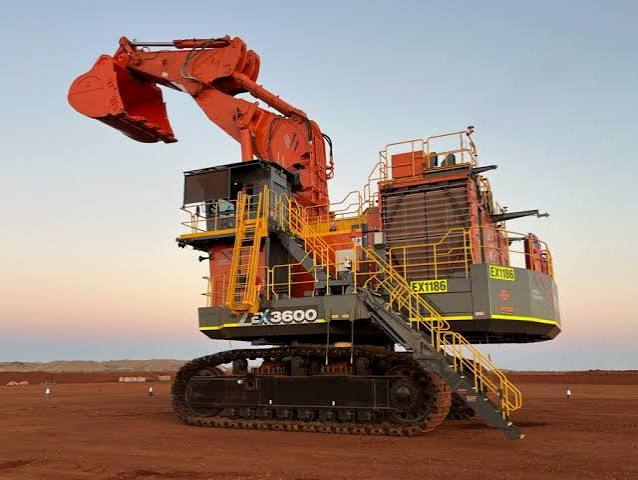

Hitachi EX3600 Mini Excavator
1 / 5
Image 1 of 5
Image: lubyequipment.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity1,901.9 gal
Hydraulic System Fluid Capacity1,056.6 gal
Operating Voltage24 V
Alternator Supplied Amperage150 A
Engine Oil Capacity81.9 gal
Cooling System Fluid Capacity89.9 gal
Swing Speed3 rpm

Engine

Engine specifications
Engine ModelS16R-Y1TAA1
Displacement3,991 in³
Power Measured @1,600 rpm
Gross Power1,880.0 hp
Net Power1,880.0 hp
Number of Cylinders16
Aspirationturbocharged air-cooled intercooler

Dimensions

Dimensions specifications
Height - Top of Cab306 in
Length of Track on Ground263 in
Tail Swing Radius268 in
Upper Structure Ground Clearance101 in
Length of Tracks343 in
Height of Tracks91 in

Undercarriage

Undercarriage specifications
Track Gauge217 in
Max Travel Speed1.4 mph
Number of Upper Rollers3
Loading Shovel Operating Weight771,618 lb
Loading Shovel Shoe Width50 in
Loading Shovel Ground Pressure26 psi
Number of Lower Rollers8
Backhoe Shoe Width 150 in
Backhoe Operating Weight - Shoe 1767,209 lb
Backhoe Ground Pressure - Shoe 126 psi
Number of Track Shoes per Side38
Tail Swing Radius268 in

Bucket

Bucket specifications
Reference Bucket Capacity27.49 yd³

Loading Shovel

Loading Shovel specifications
Max Dig Depth155 in
Max Dig Reach600 in
Max Cutting Height642 in
Max Dump Height433 in
Arm Crowd Force885 lb-ft
Loading Shovelstandard

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth339 in
Max Cutting Height697 in
Max Dump Height457 in
Max Reach on Ground694 in
Max Vertical Wall Dig Depth161 in
Arm Crowd Force701 lb-ft
