Terex

RH170

Mini Excavator

Gross Power
2,400.0 hp
Net Power
2,000.0 hp
All mini excavators

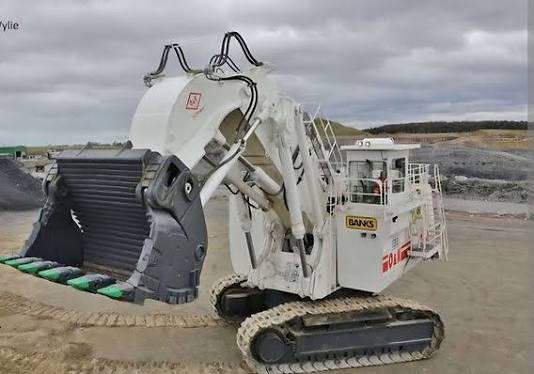

Terex RH170 Mini Excavator
1 / 5
Image 1 of 5
Image: marketbook.com.na

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity1,664.1 gal
Hydraulic System Fluid Capacity792.5 gal
Operating Voltage24 V
Alternator Supplied Amperage350 A
Swing Speed5 rpm

Engine

Engine specifications
Engine Model2x KTA 38 C-1200
Displacement2,307 in³
Power Measured @1,750 rpm
Gross Power2,400.0 hp
Net Power2,000.0 hp
Number of Cylinders24
Aspirationturbocharged and air to air aftercooled

Dimensions

Dimensions specifications
Height - Top of Cab322 in
Length of Track on Ground245 in
Upper Structure Ground Clearance101 in
Length of Tracks318 in
Height of Tracks88 in

Undercarriage

Undercarriage specifications
Track Gauge214 in
Max Travel Speed1.7 mph
Number of Upper Rollers2
Number of Lower Rollers7
Backhoe Shoe Width 147 in
Backhoe Operating Weight - Shoe 1869,503 lb
Backhoe Ground Pressure - Shoe 134 psi
Number of Track Shoes per Side42
Tail Swing Radius268 in

Bucket

Bucket specifications
Reference Bucket Capacity27.49 yd³
Maximum Bucket Capacity27.49 yd³
Minimum Bucket Capacity23.60 yd³

Loading Shovel

Loading Shovel specifications
Max Dig Depth100 in
Max Dig Reach602 in
Max Cutting Height559 in
Max Dump Height426 in
Arm Crowd Force1,650 lb-ft
Height to Top of Boom - shovel324 in

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth276 in
Max Cutting Height670 in
