Tata Hitachi

EX3600-5

Mini Excavator

Gross Power
1,877.5 hp
Net Power
1,877.5 hp
All mini excavators

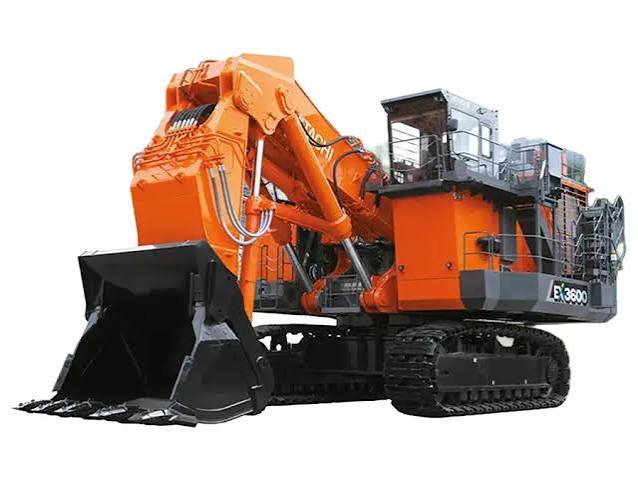

Tata Hitachi EX3600-5 Mini Excavator
1 / 5
Image 1 of 5
Image: tatahitachi.co.in

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity1,901.9 gal
Swing Speed3 rpm

Engine

Engine specifications
Engine ModelS16R-Y1TAA1
Displacement3,991 in³
Gross Power1,877.5 hp
Net Power1,877.5 hp

Dimensions

Dimensions specifications
Height - Top of Cab306 in
Length of Track on Ground263 in
Upper Structure Ground Clearance101 in
Length of Tracks343 in

Undercarriage

Undercarriage specifications
Max Travel Speed1.4 mph
Loading Shovel Operating Weight767,209 lb
Loading Shovel Shoe Width50 in
Loading Shovel Ground Pressure26 psi
Backhoe Shoe Width 150 in
Backhoe Operating Weight - Shoe 1771,618 lb
Backhoe Ground Pressure - Shoe 126 psi

Loading Shovel

Loading Shovel specifications
Max Dig Depth155 in
Max Dig Reach600 in
Max Cutting Height642 in
Max Dump Height433 in

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth339 in
Max Cutting Height697 in
Max Dump Height457 in
Max Reach on Ground694 in
Max Vertical Wall Dig Depth161 in
