Hitachi

EX400LC-5

Excavator

Operating Weight
100,500 lb
Max Digging Depth
288 in
Max Digging Depth
306 in
Net Power
301.0 hp
All excavators

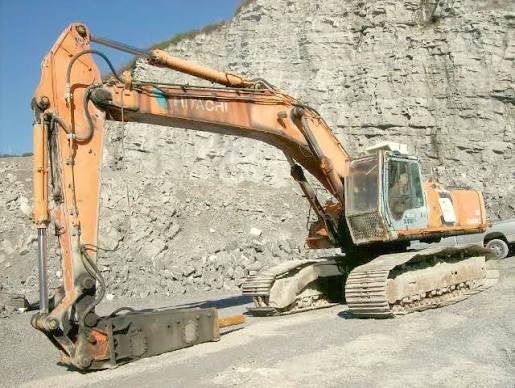

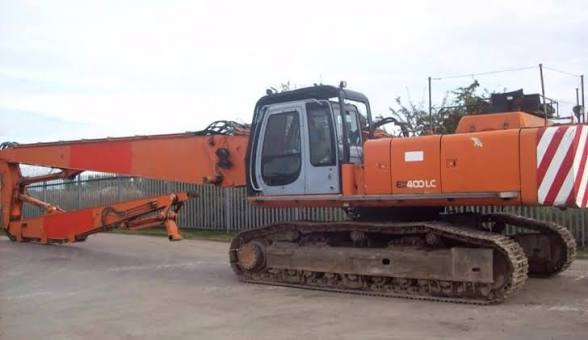

Hitachi EX400LC-5 Excavator
1 / 5
Image 1 of 5
Image: toku-world.com

Specifications

60 data points

Operating Specifications

Operating Specifications specifications
Operating Weight100,500 lb
Fuel Capacity159.9 gal
Hydraulic Pump Flow Capacity190.3 gal/min
Hydraulic System Fluid Capacity137.4 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity13.3 gal
Cooling System Fluid Capacity11.9 gal
Swing Drive Fluid Capacity2.2 gal
Alternator Supplied Amperage40 A

Engine

Engine specifications
Engine ModelA-6RB1TQA
Displacement838 in³
Power Measured @2,000 rpm
Net Power301.0 hp
AspirationTurbocharged
Torque Measured @1,400 rpm
Max Torque907 lb-ft

Dimensions

Dimensions specifications
Ground Clearance30 in
Height - Top of Cab130 in
Length of Track on Ground176 in
Tail Swing Radius137 in
Width to Outside of Tracks144 in
Removal Counterweight Clearance54 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge114 in
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size30 in
Number of Shoes per Side53
Number of Carrier Rollers per Side3

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth288 in
Max Reach Along Ground442 in
Max Loading Height277 in
Max Vertical Wall Digging Depth189 in
Max Cutting Height404 in
Shipping Length of Unit465 in
Shipping Height of Unit138 in

Bucket

Bucket specifications
Reference Bucket Capacity2.39 yd³
Maximum Bucket Capacity3.00 yd³
Minimum Bucket Capacity1.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth306 in
Max Vertical Wall Digging Depth263 in
Max Cutting Height437 in
Max Loading Height302 in
Max Reach Along Ground466 in
Shipping Length of Unit465 in
Shipping Height of Unit138 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth325 in
Max Cutting Height441 in
Max Loading Height307 in
Max Vertical Wall Digging Depth277 in
Max Reach Along Ground483 in
Shipping Length of Unit465 in
Shipping Height of Unit138 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth359 in
Max Cutting Height467 in
Max Reach Along Ground520 in
Max Loading Height346 in
Max Vertical Wall Dig Depth333 in
Shipping Length of Unit465 in
