Hyundai

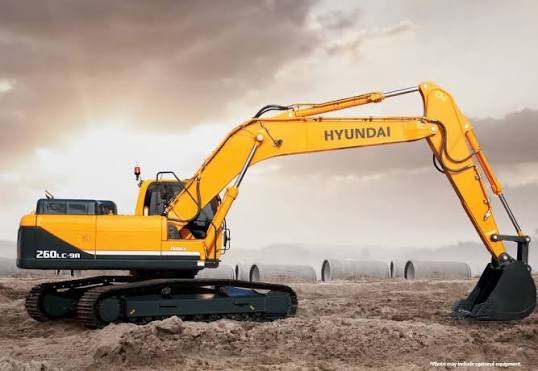

ROBEX 260NLC-9A
- Operating Weight
- 60,517 lb
- Max Digging Depth
- 239 in
- Max Digging Depth
- 254 in
- Net Power
- 178.0 hp
1 / 5
Image 1 of 5
Specifications
59 data points
Operating Specifications
| Operating Weight | 60,517 lb |
|---|---|
| Fuel Capacity | 105.7 gal |
| Hydraulic Pump Flow Capacity | 58.6 gal/min |
| Hydraulic System Fluid Capacity | 75.3 gal |
| Engine Oil Capacity | 6.2 gal |
| Cooling System Fluid Capacity | 10.6 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal |
| Alternator Supplied Amperage | 95 A |
Engine
| Engine Model | QSB6.7 |
|---|---|
| Displacement | 408 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 188.0 hp |
| Net Power | 178.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 597 lb-ft |
| Engine Make | Cummins |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 119 in |
| Length of Track on Ground | 183 in |
| Tail Swing Radius | 118 in |
| Width to Outside of Tracks | 113 in |
| Removal Counterweight Clearance | 44 in |
Undercarriage
| Ground Pressure | 8 psi |
|---|---|
| Track Gauge | 95 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 47,600 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 239 in |
|---|---|
| Max Reach Along Ground | 370 in |
| Max Loading Height | 251 in |
| Max Vertical Wall Digging Depth | 216 in |
| Max Cutting Height | 373 in |
| Shipping Length of Unit | 396 in |
| Shipping Height of Unit | 139 in |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 254 in |
|---|---|
| Max Vertical Wall Digging Depth | 223 in |
| Max Cutting Height | 373 in |
| Max Loading Height | 253 in |
| Max Reach Along Ground | 381 in |
| Shipping Length of Unit | 395 in |
| Shipping Height of Unit | 142 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 276 in |
|---|---|
| Max Cutting Height | 381 in |
| Max Loading Height | 261 in |
| Max Vertical Wall Digging Depth | 243 in |
| Max Reach Along Ground | 402 in |
| Shipping Length of Unit | 391 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 298 in |
|---|---|
| Max Cutting Height | 391 in |
| Max Reach Along Ground | 422 in |
| Max Loading Height | 271 in |
| Max Vertical Wall Dig Depth | 270 in |
| Shipping Length of Unit | 391 in |
