Caterpillar

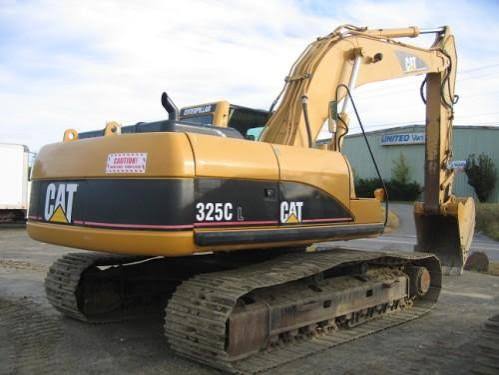

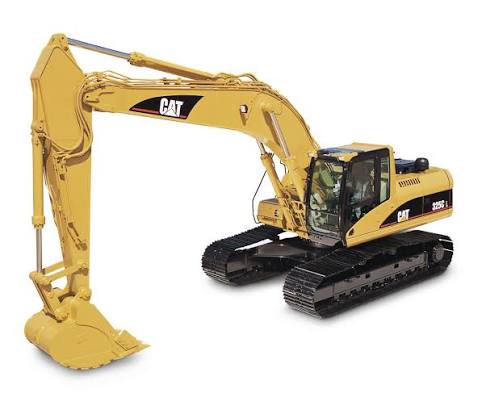

325C LN
- Operating Weight
- 60,407 lb
- Max Digging Depth
- 182 in
- Max Digging Depth
- 204 in
- Net Power
- 173.0 hp
1 / 5
Image 1 of 5
Specifications
50 data points
Operating Specifications
| Operating Weight | 60,407 lb |
|---|---|
| Fuel Capacity | 132.1 gal |
| Hydraulic Pump Flow Capacity | 124.2 gal/min |
| Hydraulic System Fluid Capacity | 81.9 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 9.0 gal |
| Cooling System Fluid Capacity | 8.0 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 2.7 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | 3126B ATAAC diesel engine |
|---|---|
| Displacement | 439 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 189.0 hp |
| Net Power | 173.0 hp |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 126 in |
| Length of Track on Ground | 150 in |
| Tail Swing Radius | 121 in |
| Width to Outside of Tracks | 119 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Track Gauge | 95 in |
|---|---|
| Max Travel Speed | 3.2 mph |
| Shoe Size | 24 in |
| Drawbar Pull | 5,305,491 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 182 in |
|---|---|
| Max Reach Along Ground | 394 in |
| Max Loading Height | 320 in |
| Max Vertical Wall Digging Depth | 143 in |
| Max Cutting Height | 451 in |
| Shipping Length of Unit | 427 in |
| Shipping Height of Unit | 122 in |
Bucket
| Reference Bucket Capacity | 1.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 3.00 yd³ |
| Minimum Bucket Capacity | 0.90 yd³ |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 204 in |
|---|---|
| Max Vertical Wall Digging Depth | 163 in |
| Max Cutting Height | 472 in |
| Max Loading Height | 349 in |
| Max Reach Along Ground | 417 in |
| Shipping Length of Unit | 420 in |
| Shipping Height of Unit | 122 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 226 in |
|---|---|
| Max Cutting Height | 487 in |
| Max Loading Height | 365 in |
| Max Vertical Wall Digging Depth | 183 in |
| Max Reach Along Ground | 437 in |
| Shipping Length of Unit | 419 in |
| Shipping Height of Unit | 125 in |
