Hitachi

EX5500

Mini Excavator

Gross Power
2,700.0 hp
Net Power
2,604.0 hp
All mini excavators

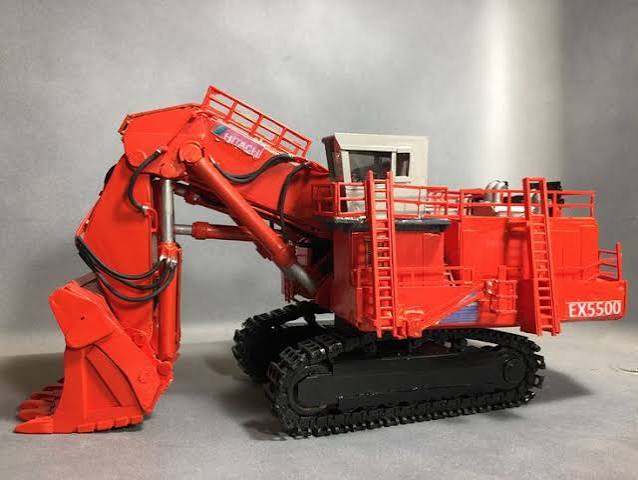

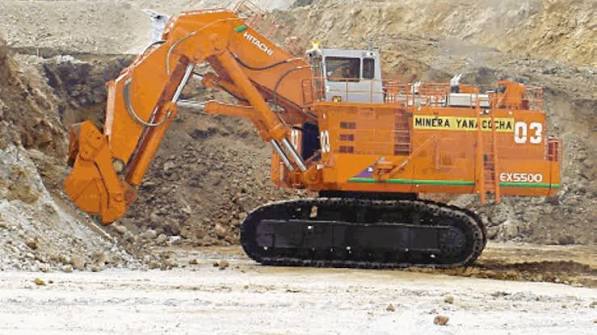

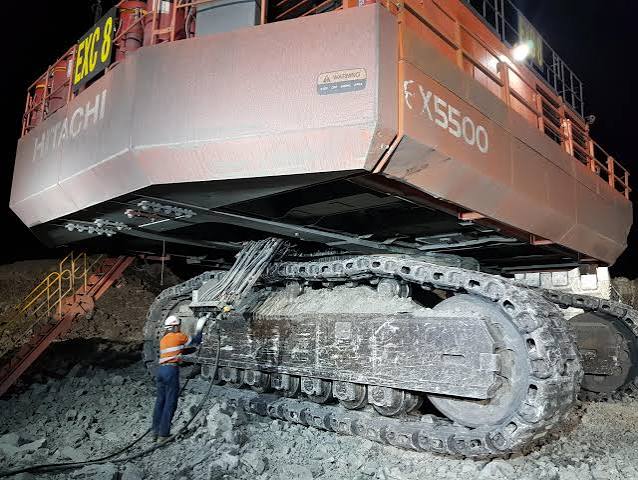

Hitachi EX5500 Mini Excavator
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity2,747.1 gal
Hydraulic System Fluid Capacity1,637.7 gal
Operating Voltage24 V
Alternator Supplied Amperage150 A
Engine Oil Capacity137.4 gal
Cooling System Fluid Capacity200.8 gal
Swing Speed3 rpm

Engine

Engine specifications
Engine ModelQSK45-C
Displacement5,492 in³
Power Measured @1,800 rpm
Gross Power2,700.0 hp
Net Power2,604.0 hp
Number of Cylinders12
Aspirationturbocharged after-cooled

Dimensions

Dimensions specifications
Height - Top of Cab335 in
Length of Track on Ground276 in
Tail Swing Radius306 in
Upper Structure Ground Clearance119 in
Length of Tracks369 in
Height of Tracks108 in

Undercarriage

Undercarriage specifications
Track Gauge236 in
Max Travel Speed1.5 mph
Number of Upper Rollers3
Loading Shovel Operating Weight1,141,995 lb
Loading Shovel Shoe Width55 in
Loading Shovel Ground Pressure33 psi
Number of Lower Rollers7
Backhoe Shoe Width 155 in
Backhoe Operating Weight - Shoe 11,141,995 lb
Backhoe Ground Pressure - Shoe 133 psi
Number of Track Shoes per Side39
Tail Swing Radius306 in

Bucket

Bucket specifications
Reference Bucket Capacity35.39 yd³
Maximum Bucket Capacity40.10 yd³
Minimum Bucket Capacity35.39 yd³

Loading Shovel

Loading Shovel specifications
Max Dig Depth180 in
Max Dig Reach654 in
Max Cutting Height745 in
Max Dump Height516 in
Arm Crowd Force1,158 lb-ft
Loading Shovelstandard

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth355 in
Max Cutting Height811 in
Max Dump Height512 in
Max Reach on Ground792 in
Max Vertical Wall Dig Depth217 in
Arm Crowd Force915 lb-ft
