Terex

RH340B

Mini Excavator

Gross Power
3,000.0 hp
Net Power
3,000.0 hp
All mini excavators

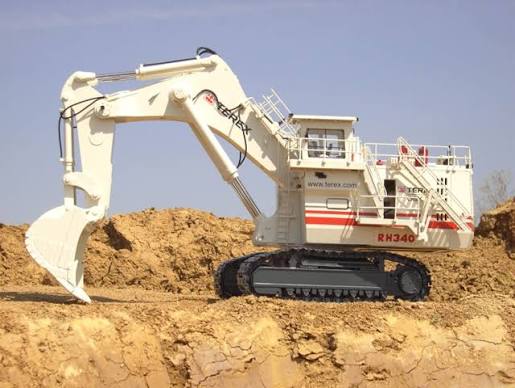

Terex RH340B Mini Excavator
1 / 5
Image 1 of 5
Image: constructionscalemodels.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity2,947.9 gal
Hydraulic System Fluid Capacity1,875.5 gal
Operating Voltage24 V
Alternator Supplied Amperage300 A
Swing Speed4 rpm

Engine

Engine specifications
Engine Model2 x 3512 C
Displacement3,574 in³
Power Measured @1,800 rpm
Gross Power3,000.0 hp
Net Power3,000.0 hp
Number of Cylinders12
AspirationTurbocharged and air to air aftercooled

Dimensions

Dimensions specifications
Height - Top of Cab346 in
Length of Track on Ground280 in
Upper Structure Ground Clearance110 in
Length of Tracks364 in
Height of Tracks100 in

Undercarriage

Undercarriage specifications
Track Gauge221 in
Max Travel Speed1.3 mph
Number of Upper Rollers2
Loading Shovel Operating Weight1,249,139 lb
Loading Shovel Shoe Width55 in
Loading Shovel Ground Pressure37 psi
Number of Lower Rollers7
Backhoe Shoe Width 155 in
Backhoe Operating Weight - Shoe 11,251,124 lb
Backhoe Ground Pressure - Shoe 137 psi
Number of Track Shoes per Side42

Loading Shovel

Loading Shovel specifications
Max Dig Depth107 in
Max Dig Reach647 in
Max Cutting Height611 in
Max Dump Height457 in

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth350 in
Max Cutting Height626 in
