Hitachi

EX700

Excavator

Operating Weight
149,033 lb
Max Digging Depth
285 in
Max Digging Depth
326 in
Net Power
414.4 hp
All excavators

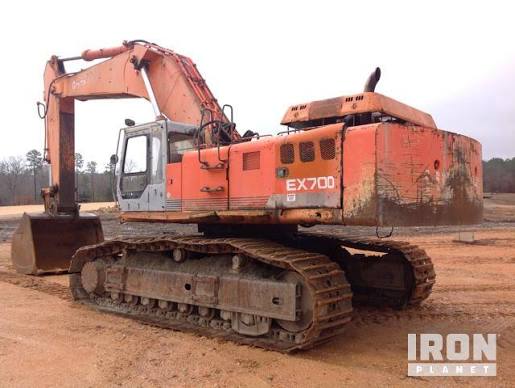

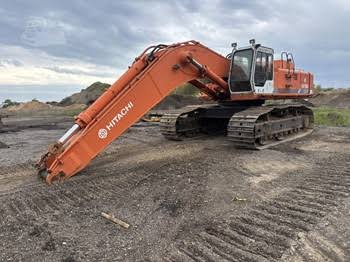

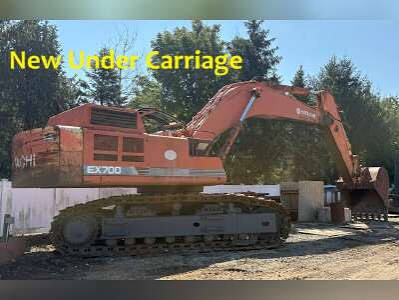

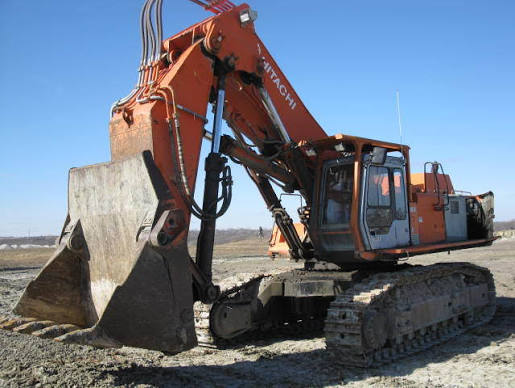

Hitachi EX700 Excavator
1 / 5
Image 1 of 5
Image: machinerymarketplace.net

Specifications

56 data points

Operating Specifications

Operating Specifications specifications
Operating Weight149,033 lb
Fuel Capacity211.4 gal
Hydraulic Pump Flow Capacity258.9 gal/min
Engine Oil Capacity11.7 gal
Cooling System Fluid Capacity19.1 gal
Swing Drive Fluid Capacity3.2 gal

Engine

Engine specifications
Engine ModelNT A855-C450
Displacement854 in³
Power Measured @1,800 rpm
Gross Power434.5 hp
Net Power414.4 hp
AspirationTurbocharged
Torque Measured @1,400 rpm
Max Torque1,338 lb-ft
Engine MakeCUMMINS

Dimensions

Dimensions specifications
Ground Clearance36 in
Height - Top of Cab139 in
Length of Track on Ground554 in
Tail Swing Radius162 in
Width to Outside of Tracks150 in
Removal Counterweight Clearance64 in

Undercarriage

Undercarriage specifications
Ground Pressure15 psi
Max Travel Speed2.9 mph
Shoe Size26 in
Number of Shoes per Side47

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth285 in
Max Reach Along Ground475 in
Max Loading Height304 in
Max Vertical Wall Digging Depth180 in
Max Cutting Height452 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth326 in
Max Vertical Wall Digging Depth229 in
Max Cutting Height485 in
Max Loading Height336 in
Max Reach Along Ground522 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth352 in
Max Cutting Height500 in
Max Loading Height344 in
Max Vertical Wall Digging Depth285 in
Max Reach Along Ground545 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth383 in
Max Cutting Height516 in
Max Reach Along Ground575 in
Max Loading Height359 in
Max Vertical Wall Dig Depth329 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth418 in
Max Reach Along Ground608 in
Max Cutting Height528 in
Max Loading Height380 in
Max Vertical Wall Dig Depth359 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth475 in
Max Reach Along Ground678 in
Max Cutting Height571 in
Max Loading Height426 in
Max Vertical Wall Dig Depth414 in
