Terex

TXC 420LC-1

Excavator

Operating Weight
90,830 lb
Max Digging Depth
305 in
Max Digging Depth
333 in
Net Power
281.0 hp
All excavators

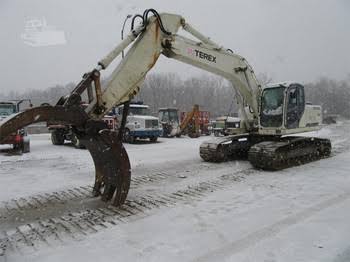

Terex TXC 420LC-1 Excavator
1 / 5
Image 1 of 5
Image: discount-equipment.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight90,830 lb
Fuel Capacity145.3 gal
Hydraulic Pump Flow Capacity166.5 gal/min
Hydraulic System Fluid Capacity108.4 gal
Hydraulic System Relief Valve Pressure4,550 psi
Engine Oil Capacity7.4 gal
Cooling System Fluid Capacity14.8 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.6 gal

Engine

Engine specifications
Engine ModelDE12TIS
Displacement675 in³
Power Measured @2,000 rpm
Net Power281.0 hp
AspirationTurbocharged air to air intercooled
Torque Measured @1,400 rpm
Max Torque853 lb-ft

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab125 in
Length of Track on Ground168 in
Tail Swing Radius145 in
Width to Outside of Tracks132 in
Removal Counterweight Clearance50 in

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Track Gauge109 in
Number of Track Rollers per Side9
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side50
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth305 in
Max Reach Along Ground446 in
Max Loading Height309 in
Max Vertical Wall Digging Depth174 in
Max Cutting Height433 in
Shipping Length of Unit461 in
Shipping Height of Unit142 in

Bucket

Bucket specifications
Reference Bucket Capacity2.50 yd³
Maximum Bucket Capacity2.90 yd³
Minimum Bucket Capacity1.90 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth333 in
Max Vertical Wall Digging Depth200 in
Max Cutting Height454 in
Max Loading Height329 in
Max Reach Along Ground475 in
