Hitachi
Case
621D XT
Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 46,340 lb |
|---|---|
| Fuel Capacity | 89.9 gal |
| Tire Size | 26.5-25-20PR |
| Hydraulic System Fluid Capacity | 52.9 gal |
| Static Tipping Weight | 35,960 lb |
| Operating Voltage | 24 V |
| Turning Radius | 269 in |
| Engine Oil Fluid Capacity | 8.8 gal |
| Rear Axle Oscillation | 26 ° |
| Front Axle/Diff Fluid Capacity | 8.5 gal |
| Rear Axle/Diff Fluid Capacity | 8.5 gal |
| Cooling System Fluid Capacity | 21.2 gal |
| Transmission Fluid Capacity | 11.4 gal |
Engine
| Engine Model | PE6T34 |
|---|---|
| Displacement | 712 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 240.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 87.8 gal/min |
|---|---|
| Raise Time | 6.6 s |
| Lower Time | 3.5 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,130 psi |
| Pump Type | 2x Gear |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 142 in |
| Wheelbase | 134 in |
| Width Over Tires | 115 in |
| Reach at Max Lift and Dump | 55 in |
| Length with Bucket on Ground | 331 in |
| Hinge Pin - Max Height | 165 in |
Transmission
| Max Speed - Forward | 24.3 mph |
|---|---|
| Max Speed - Reverse | 25.8 mph |
| Transmission Type | Torque Converter |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 4.60 yd³ |
|---|---|
| Bucket Capacity - struck | 4.00 yd³ |
| Dump Clearance at Max Raise | 117 in |
| Breakout Force | 45,412 lb |

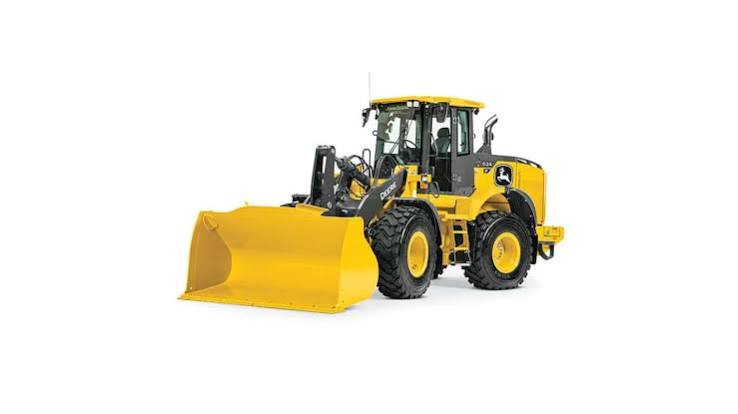

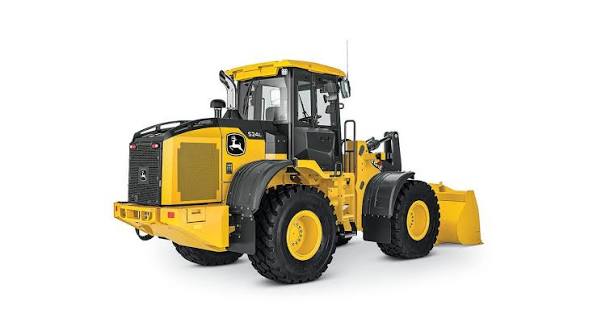

Comparable machines
