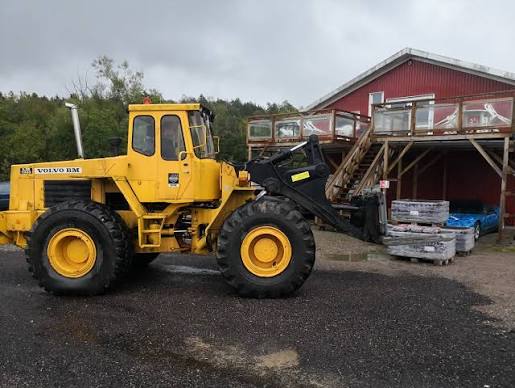

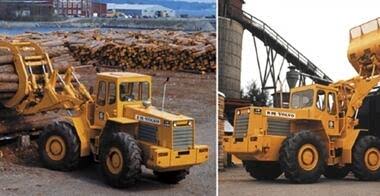

Volvo
BM 1240
- Operating Weight
- 27,999 lb
- Bucket Capacity - heaped
- 3.30 yd³
- Gross Power
- 160.0 hp
- Net Power
- 145.0 hp
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 27,999 lb |
|---|---|
| Fuel Capacity | 60.8 gal |
| Tire Size | 20.5-25/16 L2.L3 |
| Hydraulic System Fluid Capacity | 68.7 gal |
| Static Tipping Weight | 18,078 lb |
| Operating Voltage | 24 V |
| Turning Radius | 231 in |
| Engine Oil Fluid Capacity | 4.5 gal |
| Alternator Supplied Amperage | 25 A |
| Front Axle/Diff Fluid Capacity | 9.6 gal |
| Rear Axle/Diff Fluid Capacity | 8.7 gal |
| Cooling System Fluid Capacity | 7.4 gal |
| Transmission Fluid Capacity | 6.7 gal |
Engine
| Engine Model | D70B |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 160.0 hp |
| Net Power | 145.0 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,600 rpm |
Hydraulic System
| Pump Flow Capacity | 66.1 gal/min |
|---|---|
| Raise Time | 7.2 s |
| Lower Time | 5.1 s |
| Dump Time | 2.8 s |
| Relief Valve Setting | 1,990 psi |
| Pump Type | Gear-Type Design |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 121 in |
| Wheelbase | 119 in |
| Width Over Tires | 98 in |
| Length with Bucket on Ground | 269 in |
| Hinge Pin - Max Height | 156 in |
Transmission
| Max Speed - Forward | 26.0 mph |
|---|---|
| Max Speed - Reverse | 26.0 mph |
| Transmission Type | Full power shift 4-speed transmission |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 3.30 yd³ |
|---|---|
| Dump Clearance at Max Raise | 119 in |
| Breakout Force | 16,160 lb |
| Bucket Width | 100 in |
