Hitachi
Caterpillar
R1300G

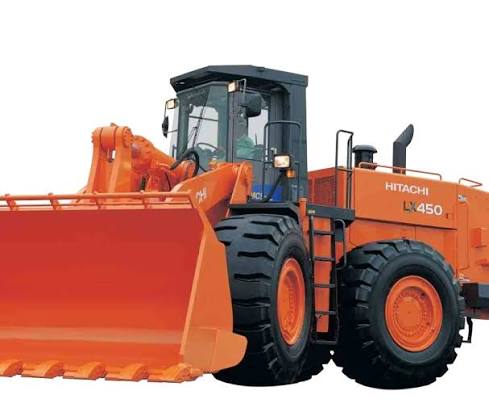

Wheel Loader
35 specifications
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 101,920 lb |
|---|---|
| Fuel Capacity | 179.7 gal |
| Tire Size | 35/65-33-24PR (L4) |
| Hydraulic System Fluid Capacity | 74.0 gal |
| Static Tipping Weight | 68,101 lb |
| Operating Voltage | 24 V |
| Turning Radius | 301 in |
| Engine Oil Fluid Capacity | 22.0 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 110 A |
| Front Axle/Diff Fluid Capacity | 47.6 gal |
| Rear Axle/Diff Fluid Capacity | 47.6 gal |
| Cooling System Fluid Capacity | 41.3 gal |
| Transmission Fluid Capacity | 22.5 gal |
Engine
| Engine Model | S6A3-Y2TAA1 |
|---|---|
| Displacement | 1,133 in³ |
| Power Measured @ | 2,050 rpm |
| Net Power | 444.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharger |
Hydraulic System
| Pump Flow Capacity | 94.9 gal/min |
|---|---|
| Raise Time | 8.5 s |
| Lower Time | 4.0 s |
| Dump Time | 2.3 s |
| Relief Valve Setting | 2,986 psi |
| Pump Type | gear type |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 167 in |
| Wheelbase | 162 in |
| Width Over Tires | 146 in |
| Reach at Max Lift and Dump | 80 in |
| Length with Bucket on Ground | 444 in |
| Hinge Pin - Max Height | 199 in |
Transmission
| Max Speed - Forward | 20.6 mph |
|---|---|
| Max Speed - Reverse | 21.2 mph |
| Transmission Type | solenoid full powershift planetary gear |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 7.49 yd³ |
|---|---|
| Bucket Capacity - struck | 6.30 yd³ |
| Dump Clearance at Max Raise | 132 in |
| Breakout Force | 89,924 lb |
| Bucket Width | 159 in |
