Hitachi
Volvo
L50D

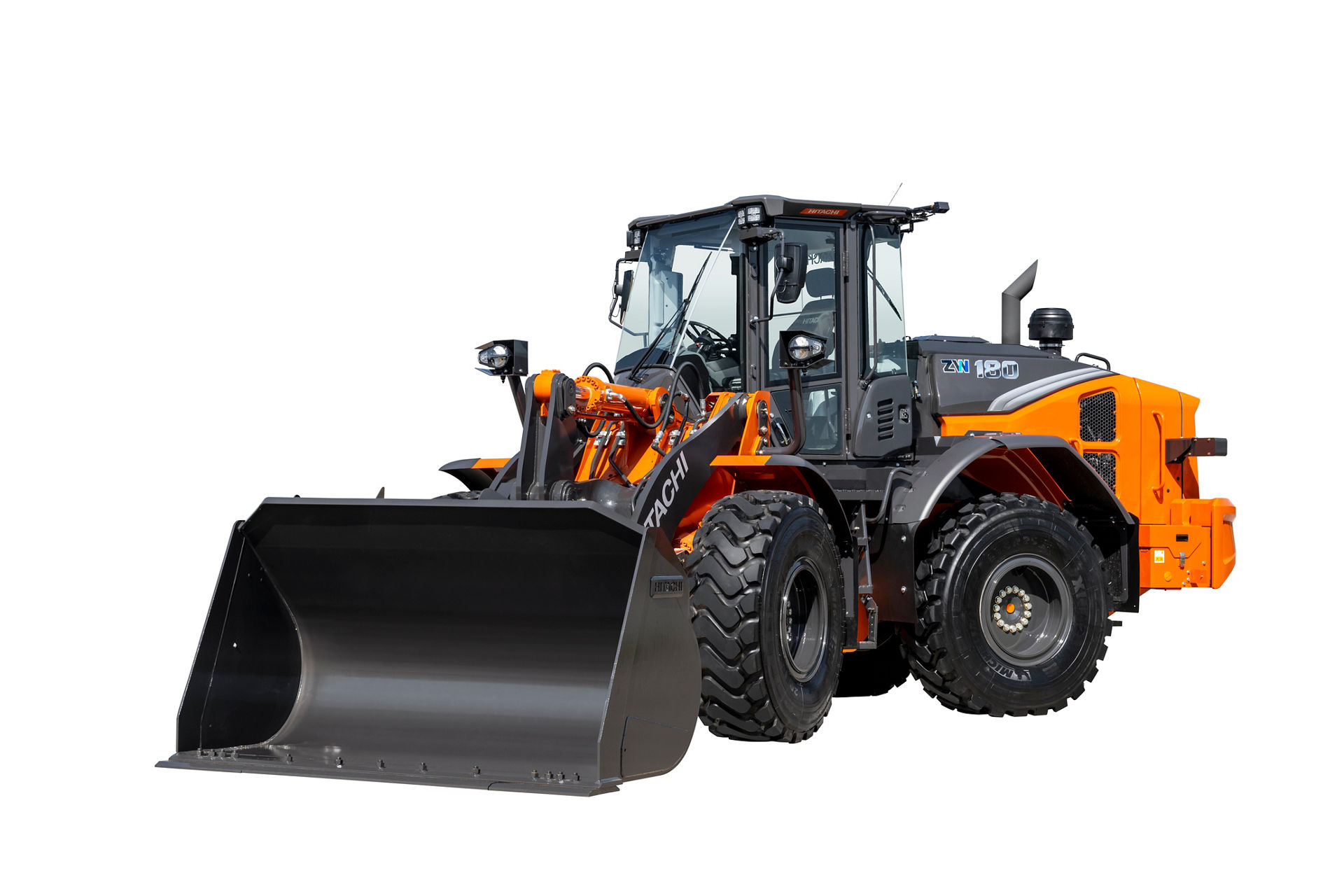

Wheel Loader
44 specifications
1 / 5
Image 1 of 5
Specifications
36 data points
Operating Specifications
| Operating Weight | 31,482 lb |
|---|---|
| Fuel Capacity | 60.8 gal |
| Tire Size | 20.5-25-12PR (L3) |
| Hydraulic System Fluid Capacity | 26.5 gal |
| Static Tipping Weight | 25,309 lb |
| Operating Voltage | 24 V |
| Turning Radius | 206 in |
| Engine Oil Fluid Capacity | 6.7 gal |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 7.4 gal |
| Rear Axle/Diff Fluid Capacity | 7.4 gal |
| Cooling System Fluid Capacity | 6.9 gal |
| Transmission Fluid Capacity | 8.0 gal |
Engine
| Engine Model | QSB6.7 |
|---|---|
| Displacement | 408 in³ |
| Gross Power | 171.0 hp |
| Aspiration | Turbocharger & charge air cooled |
Hydraulic System
| Raise Time | 5.7 s |
|---|---|
| Lower Time | 2.9 s |
| Dump Time | 1.2 s |
| Pump Type | variable displacement axial plunger |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 130 in |
| Wheelbase | 121 in |
| Width Over Tires | 103 in |
| Reach at Max Lift and Dump | 43 in |
| Length with Bucket on Ground | 300 in |
| Hinge Pin - Max Height | 155 in |
Transmission
| Max Speed - Forward | 23.7 mph |
|---|---|
| Max Speed - Reverse | 23.7 mph |
| Transmission Type | Torque converter countershaft type powershit with computer controlled automatic shift and manual shift features included |
Bucket
| Bucket Capacity - heaped | 3.70 yd³ |
|---|---|
| Bucket Capacity - struck | 3.20 yd³ |
| Dump Clearance at Max Raise | 110 in |
| Breakout Force | 26,752 lb |
| Bucket Width | 107 in |
