Hitachi ZX135US-6 Excavator
1 / 5

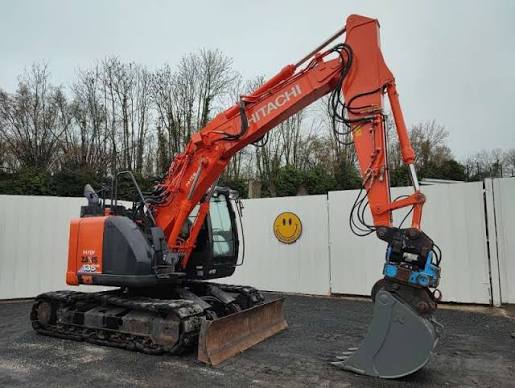

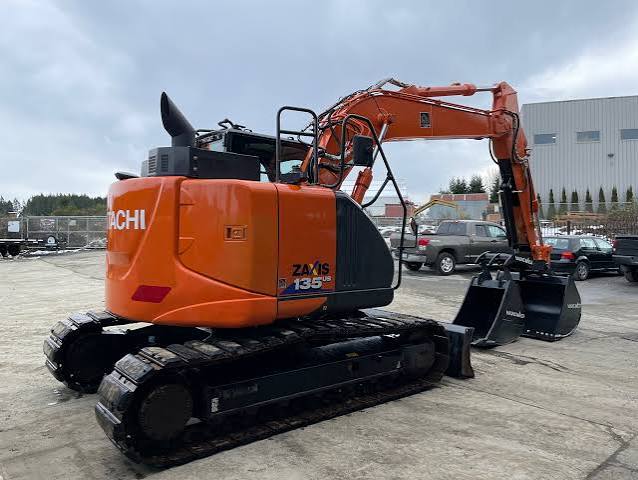

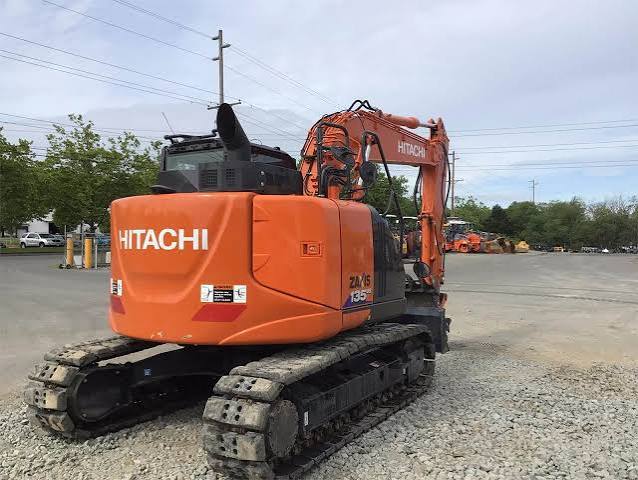

Image 1 of 5
Image: veritread.com

Specifications

67 data points

Operating Specifications

Operating Specifications specifications
Operating Weight30,644 lb

Engine

Engine specifications
Engine Model4JJ1
Displacement183 in³
Power Measured @2,000 rpm
Net Power101.0 hp
AspirationTurbocharged and charged air cooled
Engine MakeIsuzu
Cooling systemDirect-drive suction-type fan
Emissions levelEPA Final Tier 4 / EU Stage IV
Off-Level Capacity70.0 %

Hydraulic System

Hydraulic System specifications
Implement - Operating Pressure4,975 psi
Travel - Operating Pressure5,047 psi
ControlsPilot levers
Main pump type2 variable-displacement axial-piston pumps

Dimensions

Dimensions specifications
Ground Clearance17 in
Counterweight Clearance33 in
Length2,902 in
Undercarriage Overall Length142 in
Cab height114 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side7
Max Travel Speed3.5 mph
Number of Shoes per Side44
Number of Carrier Rollers per Side1
Drawbar Pull11,216 lb

Fluid Capacities

Fluid Capacities specifications
Fuel Tank58.2 gal
Hydraulic system41.0 gal
Cooling system5.6 gal
Hydraulic Tank15.9 gal
Engine oil with filter4.5 gal
Diesel exhaust fluid (DEF) tank3.2 gal
Swing drive0.9 gal
Propel1.1 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth217 in
Max Reach Along Ground325 in
Max Vertical Wall Digging Depth187 in
Max Cutting Height366 in
Max Digging Reach331 in
Max.Dumping Height270 in
Bucket Digging Force - SAE20,458 lb
Bucket Digging Force - ISO23,380 lb
Arm Digging Force - ISO15,512 lb
Arm Digging Force - SAE15,062 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth236 in
Max Vertical Wall Digging Depth205 in
Max Cutting Height381 in
Max Reach Along Ground344 in
Minimum swing radius97 in
Max Digging Reach349 in
Max.Dumping Height284 in
Bucket Digging Force - SAE20,458 lb
Bucket Digging Force - ISO23,380 lb
Arm Digging Force - SAE13,489 lb
Arm Digging Force - ISO13,713 lb

Electrical System

Electrical System specifications
Batteries2 volts
Battery capacity—
Alternator rating50 amp
Work Lights2 halogen

Cylinders

Cylinders specifications
Bore (Boom)4 in
Bore (Bucket)4 in
Stroke (Bucket)3 in
Bore (Arm)5 in
Stroke (Arm)3 in
Stroke (Boom)37 in
Rod Diameter (Arm)3 in
Rod Diameter (Boom)3 in
Rod Diameter (Bucket)35 in

Comparable machines

Other excavators in a similar weight class.
