Hitachi

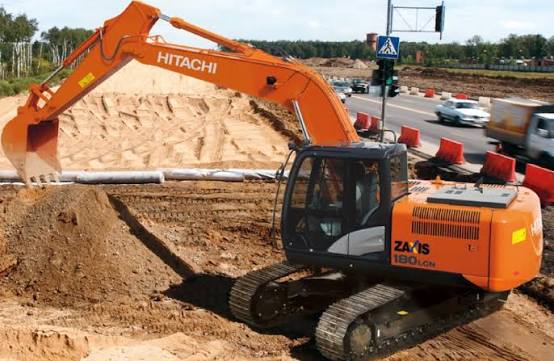

ZX180LCN
- Operating Weight
- 38,581 lb
- Max Digging Depth
- 241 in
- Max Digging Depth
- 259 in
- Net Power
- 121.0 hp
1 / 5
Image 1 of 5
Specifications
55 data points
Operating Specifications
| Operating Weight | 38,581 lb |
|---|---|
| Fuel Capacity | 74.0 gal |
| Hydraulic Pump Flow Capacity | 79.3 gal/min |
| Hydraulic System Fluid Capacity | 47.6 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 4.2 gal |
| Cooling System Fluid Capacity | 5.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.7 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | AA-4BG1TCG |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 121.0 hp |
| Aspiration | turbocharged intercooled |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 331 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 114 in |
| Length of Track on Ground | 133 in |
| Tail Swing Radius | 97 in |
| Width to Outside of Tracks | 98 in |
| Removal Counterweight Clearance | 40 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 20 in |
| Number of Shoes per Side | 46 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 241 in |
|---|---|
| Max Reach Along Ground | 350 in |
| Max Loading Height | 254 in |
| Max Vertical Wall Digging Depth | 205 in |
| Max Cutting Height | 366 in |
| Shipping Length of Unit | 354 in |
| Shipping Height of Unit | 122 in |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.60 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 259 in |
|---|---|
| Max Vertical Wall Digging Depth | 219 in |
| Max Cutting Height | 371 in |
| Max Loading Height | 259 in |
| Max Reach Along Ground | 365 in |
| Shipping Length of Unit | 353 in |
| Shipping Height of Unit | 122 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 278 in |
|---|---|
| Max Cutting Height | 385 in |
| Max Loading Height | 275 in |
| Max Vertical Wall Digging Depth | 247 in |
| Max Reach Along Ground | 385 in |
| Shipping Length of Unit | 353 in |
| Shipping Height of Unit | 134 in |
