Hitachi

ZX27U-2

Mini Excavator

Max Digging Depth
103 in
All mini excavators

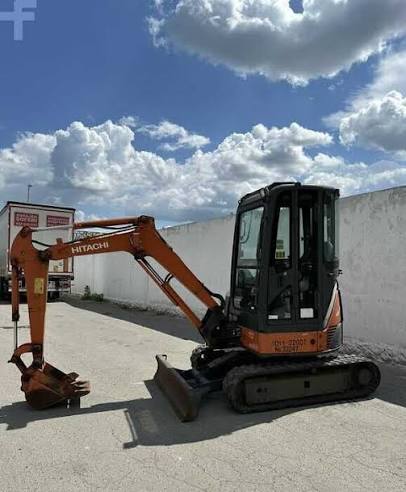

Hitachi ZX27U-2 Mini Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity10.6 gal
Hydraulic Pump Flow Capacity18.6 gal/min
Hydraulic System Fluid Capacity15.4 gal
Hydraulic System Relief Valve Pressure3,554 psi
Operating Voltage12 V
Engine Oil Capacity2.0 gal
Cooling System Fluid Capacity1.4 gal

Engine

Engine specifications
Engine Model3TNV88
Displacement100 in³
Power Measured @2,200 rpm
Number of Cylinders3
Torque Measured @1,320 rpm
Max Torque77 lb-ft

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab100 in
Length of Track on Ground59 in
Tail Swing Radius31 in
Width to Outside of Tracks61 in
Removal Counterweight Clearance23 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge50 in
Number of Track Rollers per Side4
Max Travel Speed2.8 mph
Shoe Size12 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth103 in
Max Vertical Wall Digging Depth88 in
Max Loading Height1,198 in
Shipping Length of Unit166 in
Max Cutting Height169 in
Shipping Height of Unit100 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth115 in
Max Cutting Height172 in
Max Loading Height124 in
Max Vertical Wall Digging Depth95 in
Shipping Height of Unit100 in
Shipping Length of Unit169 in
