Hitachi

ZX40U-2

Mini Excavator

Operating Weight
9,678 lb
Max Digging Depth
132 in
Net Power
39.9 hp
All mini excavators

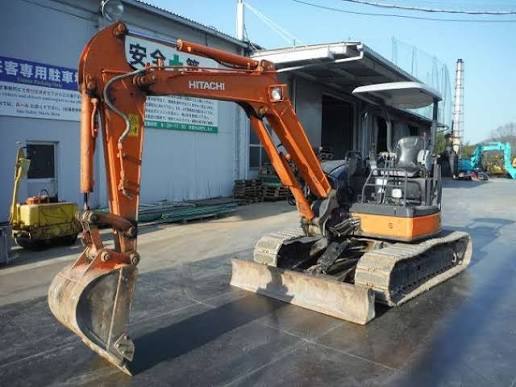

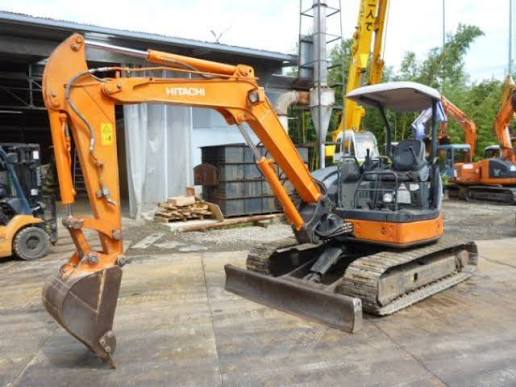

Hitachi ZX40U-2 Mini Excavator
1 / 5
Image 1 of 5
Image: toku-world.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,678 lb
Fuel Capacity18.5 gal
Hydraulic Pump Flow Capacity33.1 gal/min
Hydraulic System Fluid Capacity23.8 gal
Hydraulic System Relief Valve Pressure3,554 psi
Operating Voltage12 V
Engine Oil Capacity2.3 gal
Cooling System Fluid Capacity1.8 gal

Engine

Engine specifications
Engine Model4TNV88
Displacement134 in³
Power Measured @2,500 rpm
Net Power39.9 hp
Number of Cylinders4
Torque Measured @1,500 rpm
Max Torque102 lb-ft

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab100 in
Length of Track on Ground79 in
Tail Swing Radius40 in
Width to Outside of Tracks78 in
Removal Counterweight Clearance24 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge62 in
Number of Track Rollers per Side4
Max Travel Speed2.8 mph
Shoe Size16 in
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth132 in
Max Vertical Wall Digging Depth101 in
Max Loading Height155 in
Shipping Length of Unit211 in
Max Cutting Height221 in
Shipping Height of Unit100 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth145 in
Max Cutting Height230 in
Max Loading Height165 in
Max Vertical Wall Digging Depth115 in
Shipping Height of Unit100 in
Shipping Length of Unit212 in
