JCB
8010 CTS
Mini Excavator
34 specifications
1 / 5

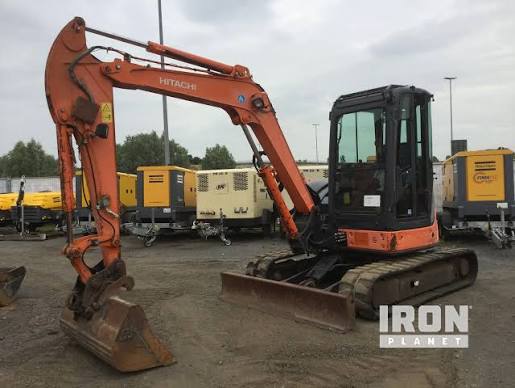

Image 1 of 5
Specifications
39 data points
Operating Specifications
| Fuel Capacity | 18.5 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 33.1 gal/min |
| Hydraulic System Fluid Capacity | 23.8 gal |
| Hydraulic System Relief Valve Pressure | 3,554 psi |
| Operating Voltage | 12 V |
| Engine Oil Capacity | 2.3 gal |
| Cooling System Fluid Capacity | 1.8 gal |
Engine
| Engine Model | 4TNV88 |
|---|---|
| Displacement | 134 in³ |
| Power Measured @ | 2,500 rpm |
| Net Power | 39.9 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 102 lb-ft |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 100 in |
| Tail Swing Radius | 40 in |
| Width to Outside of Tracks | 79 in |
| Removal Counterweight Clearance | 24 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Track Gauge | 64 in |
| Number of Track Rollers per Side | 4 |
| Max Travel Speed | 2.8 mph |
| Shoe Size | 16 in |
| Number of Carrier Rollers per Side | 1 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 143 in |
|---|---|
| Max Vertical Wall Digging Depth | 111 in |
| Max Loading Height | 162 in |
| Shipping Length of Unit | 216 in |
| Max Cutting Height | 228 in |
| Shipping Height of Unit | 100 in |
Bucket
| Reference Bucket Capacity | 0.30 yd³ |
|---|
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 152 in |
|---|---|
| Max Cutting Height | 238 in |
| Max Loading Height | 172 in |
| Max Vertical Wall Digging Depth | 125 in |
| Shipping Height of Unit | 100 in |
| Shipping Length of Unit | 219 in |
