Hitachi

ZX50U-5

Mini Excavator

Operating Weight
10,560 lb
Max Digging Depth
141 in
Net Power
36.0 hp
All mini excavators

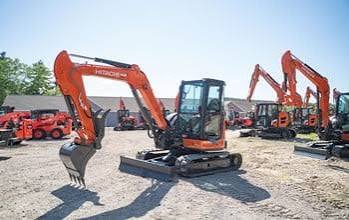

Hitachi ZX50U-5 Mini Excavator
1 / 5
Image 1 of 5
Image: lubyequipment.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,560 lb
Blade height15 in

Engine

Engine specifications
Engine Model4TNV88C
Displacement134 in³
Power Measured @2,400 rpm
Net Power36.0 hp
Alternator55 A
Emission Tier LevelEPA Final Tier 4

Hydraulic System

Hydraulic System specifications
Auxiliary hydraulic flow23.1 gal/min

Dimensions

Dimensions specifications
Ground Clearance15 in
Tail Swing Radius40 in
Track Width15,749 in
Counterweight Clearance25 in
Track length99 in

Fluid Capacities

Fluid Capacities specifications
Fuel Tank18.5 gal
Hydraulic Tank14.8 gal
Cooling system1.4 gal
Engine oil with filter2.3 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth141 in
Max Reach Along Ground236 in
Max Cutting Height217 in
Max.Dumping Height161 in
Max Digging Reach236 in
Minimum swing radius87 in

Bucket

Bucket specifications
Bucket digging Force - SAE8,273 lb
Arm digging Force5,395 lb

Boom

Boom specifications
Boom swing left80 °
Boom swing right60 °

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Blades

Blades specifications
Maximum Drop below ground15 in
Maximum Lift Above Ground19 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth152 in
Max Cutting Height238 in
Max.Dumping Height170 in
Max Digging Reach247 in
Minimum swing radius91 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth141 in
Max Cutting Height217 in

Performance

Performance specifications
Travel speed low1.6 mph
Travel Speed - High2.7 mph
