Hitachi

ZX60USB-3

Excavator

Operating Weight
13,653 lb
Max Digging Depth
149 in
Max Digging Depth
163 in
Net Power
54.0 hp
All excavators

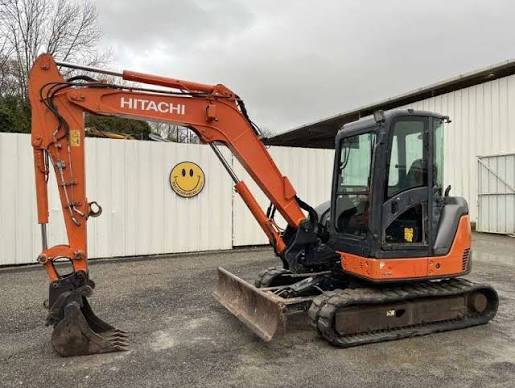

Hitachi ZX60USB-3 Excavator
1 / 5
Image 1 of 5
Image: hitachicm.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,653 lb
Fuel Capacity31.8 gal
Hydraulic Pump Flow Capacity38.1 gal/min
Hydraulic System Fluid Capacity10.9 gal
Engine Oil Capacity3.0 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Power Measured @2,000 rpm
Gross Power54.4 hp
Net Power54.0 hp
Number of Cylinders4
MakeYanmar
Emission Tier LevelInterim Tier 4

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab101 in
Length of Track on Ground79 in
Tail Swing Radius52 in
Width to Outside of Tracks79 in
Removal Counterweight Clearance25 in
Width Over Tracks79 in
Digging Depth148 in
Digging Reach245 in
Track Gauge64 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Max Travel Speed2.8 mph
Shoe Size16 in

Fluid Capacities

Fluid Capacities specifications
Fuel Tank31.8 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth149 in
Max Reach Along Ground245 in
Max Loading Height165 in
Max Cutting Height235 in
Shipping Length of Unit227 in
Shipping Height of Unit101 in
Max Digging Reach149 in
Max.Dumping Height165 in
Max Digging Height235 in

Bucket

Bucket specifications
Reference Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth163 in
Max Cutting Height245 in
Max Loading Height174 in
Max Reach Along Ground257 in
Shipping Length of Unit228 in
Shipping Height of Unit101 in
