Hitachi

ZX60USB-5

Excavator

Operating Weight
13,547 lb
Max Digging Depth
149 in
Max Digging Depth
163 in
Net Power
53.2 hp
All excavators

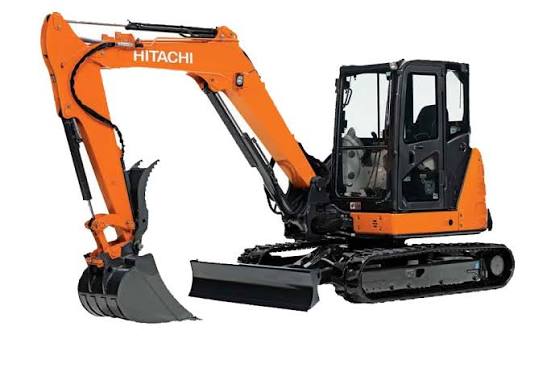

Hitachi ZX60USB-5 Excavator
1 / 5
Image 1 of 5
Image: hitachicm.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,547 lb
Blade height17 in

Engine

Engine specifications
Engine Model4TNV98C
Displacement201 in³
Power Measured @2,000 rpm
Net Power53.2 hp
Alternator55 A
Emission Tier LevelEPA Final Tier 4

Hydraulic System

Hydraulic System specifications
Auxiliary hydraulic flow24.4 gal/min

Dimensions

Dimensions specifications
Ground Clearance15 in
Tail Swing Radius52 in
Track Width15,749 in
Counterweight Clearance25 in
Track length99 in

Fluid Capacities

Fluid Capacities specifications
Fuel Tank31.8 gal
Hydraulic Tank21.2 gal
Cooling system2.1 gal
Engine oil with filter3.0 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth149 in
Max Reach Along Ground246 in
Max Cutting Height236 in
Minimum swing radius97 in
Max Digging Reach246 in
Max.Dumping Height166 in

Bucket

Bucket specifications
Arm digging Force6,992 lb
Bucket digging Force - SAE9,240 lb

Boom

Boom specifications
Boom swing left80 °
Boom swing right60 °

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Blades

Blades specifications
Maximum Lift Above Ground19 in
Maximum Drop below ground16 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth163 in
Max Cutting Height245 in
Minimum swing radius100 in
Max Digging Reach259 in
Max.Dumping Height175 in

Performance

Performance specifications
Travel speed low1.9 mph
Travel Speed - High3.0 mph
